807-010-558-104
807-010-558-104
Favorite Products
Share:

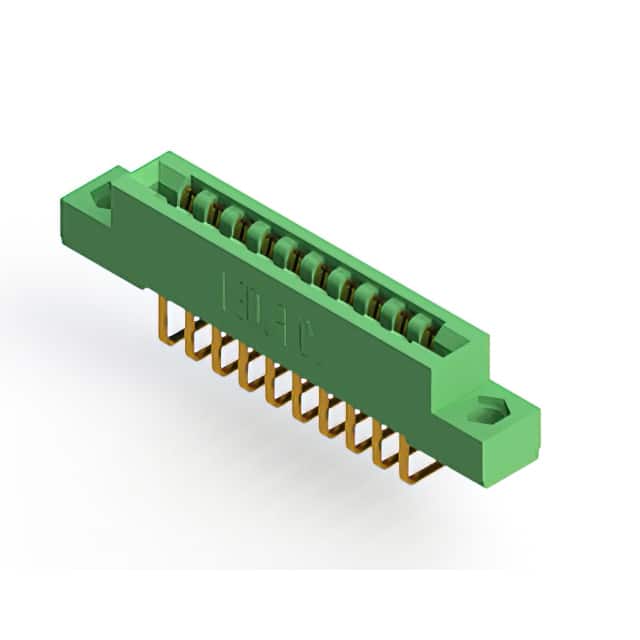

807-010-558-104

807-010-558-104
EDAC Inc.
CONN EDGE SGL FMALE 10POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mfr
EDAC Inc.
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Read Out
Single
Series
807
Product Status
Active
Card Type
Non Specified - Single Edge
Pitch
0.156" (3.96mm)
Contact Material
Copper Alloy
Number of Positions
10
Features
-
Mounting Type
Through Hole, Right Angle
Color
Green
Operating Temperature
-40°C ~ 125°C
Material - Insulation
Diallyl Phthalate (DAP)
Number of Positions/Bay/Row
10
Contact Finish Thickness
10.0µin (0.25µm)
Package
Box
Gender
Female
Number of Rows
1
Contact Finish
Gold
Contact Type
Semi Bellows
Base Product Number
807-010
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination
Solder
Termination Rows
1
