807-020-545-112
807-020-545-112
Favorite Products
Share:

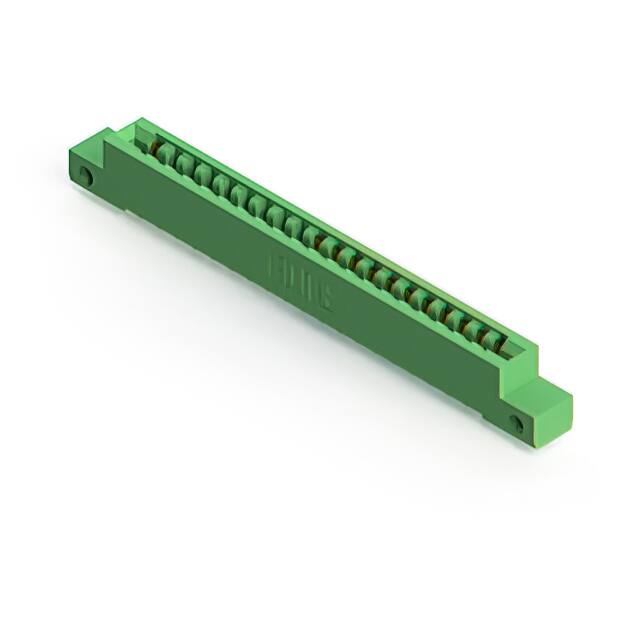

807-020-545-112

807-020-545-112
EDAC Inc.
CONN EDGE SGL FMALE 20POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Operating Temperature
-40°C ~ 125°C
Mfr
EDAC Inc.
Termination
Wire Wrap
Contact Material
Copper Alloy
Contact Finish Thickness
10.0µin (0.25µm)
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination Rows
1
Gender
Female
Number of Rows
1
Series
807
Read Out
Single
Mounting Type
Through Hole
Material - Insulation
Diallyl Phthalate (DAP)
Number of Positions/Bay/Row
20
Number of Positions
20
Card Type
Non Specified - Single Edge
Contact Type
Semi Bellows
Flange Feature
Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Package
Box
Contact Finish
Gold
Product Status
Active
Pitch
0.156" (3.96mm)
Features
-
Color
Green
Base Product Number
807-020
