807-020-547-101
807-020-547-101
Favorite Products
Share:

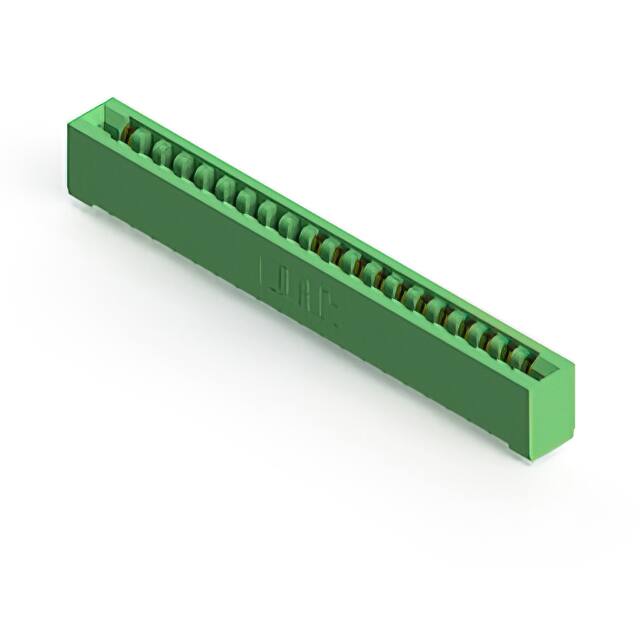

807-020-547-101

807-020-547-101
EDAC Inc.
CONN EDGE SGL FMALE 20POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Wire Wrap
Read Out
Single
Package
Box
Product Status
Active
Pitch
0.156" (3.96mm)
Card Type
Non Specified - Single Edge
Number of Rows
1
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Mounting Type
Through Hole
Material - Insulation
Diallyl Phthalate (DAP)
Number of Positions
20
Contact Finish Thickness
10.0µin (0.25µm)
Contact Material
Copper Alloy
Contact Finish
Gold
Contact Type
Semi Bellows
Flange Feature
-
Mfr
EDAC Inc.
Series
807
Termination Rows
1
Number of Positions/Bay/Row
20
Color
Green
Gender
Female
Features
-
Operating Temperature
-40°C ~ 125°C
Base Product Number
807-020
