807-021-559-103
807-021-559-103
Favorite Products
Share:

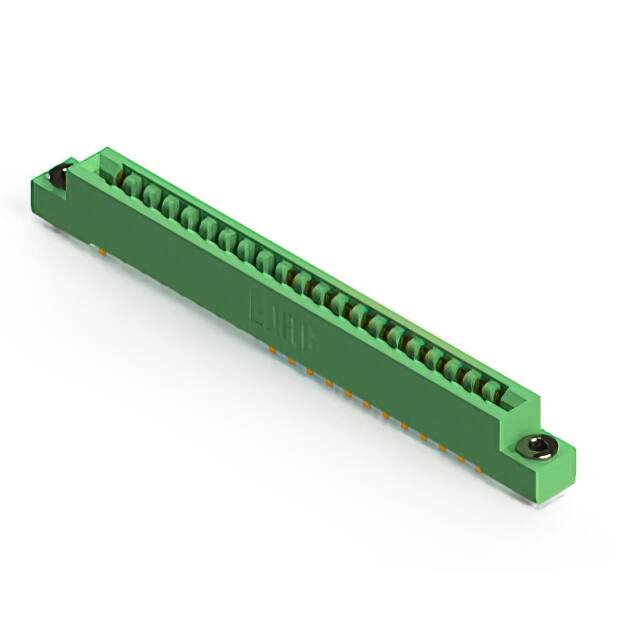

807-021-559-103

807-021-559-103
EDAC Inc.
CONN EDGE SGL FMALE 21POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Features
-
Package
Box
Gender
Female
Contact Finish Thickness
10.0µin (0.25µm)
Flange Feature
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Base Product Number
807-021
Pitch
0.156" (3.96mm)
Termination
Solder
Termination Rows
1
Number of Positions
21
Material - Insulation
Diallyl Phthalate (DAP)
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Finish
Gold
Color
Green
Number of Rows
1
Read Out
Single
Contact Material
Copper Alloy
Contact Type
Semi Bellows
Operating Temperature
-40°C ~ 125°C
Product Status
Active
Mounting Type
Through Hole, Right Angle
Card Type
Non Specified - Single Edge
Number of Positions/Bay/Row
21
Mfr
EDAC Inc.
Series
807
