807-024-521-112
807-024-521-112
Favorite Products
Share:

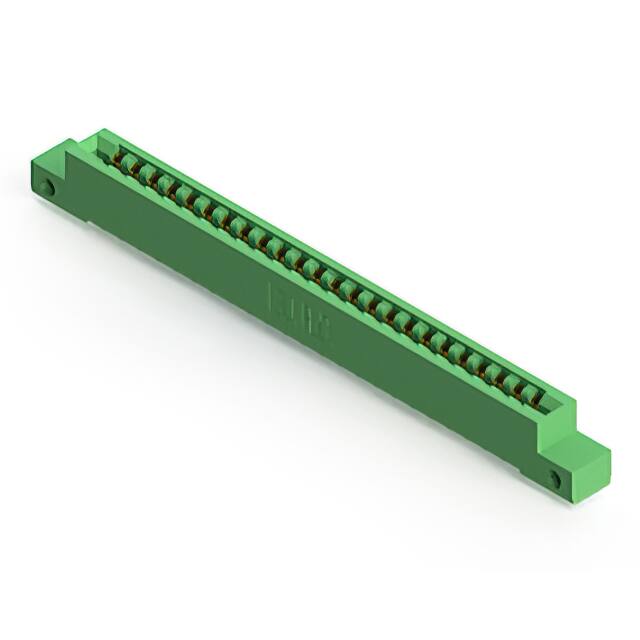

807-024-521-112

807-024-521-112
EDAC Inc.
CONN EDGE DUAL FMALE 48POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Package
Box
Material - Insulation
Diallyl Phthalate (DAP)
Number of Rows
2
Pitch
0.156" (3.96mm)
Contact Finish Thickness
10.0µin (0.25µm)
Number of Positions
48
Contact Finish
Gold
Gender
Female
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Mounting Type
Through Hole
Termination
Solder
Features
-
Contact Material
Copper Alloy
Color
Green
Card Type
Non Specified - Dual Edge
Termination Rows
1
Mfr
EDAC Inc.
Series
807
Read Out
Dual
Flange Feature
Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature
-40°C ~ 125°C
Base Product Number
807-024
Product Status
Active
Number of Positions/Bay/Row
24
Contact Type
Semi Bellows
