807-024-558-104
807-024-558-104
Favorite Products
Share:

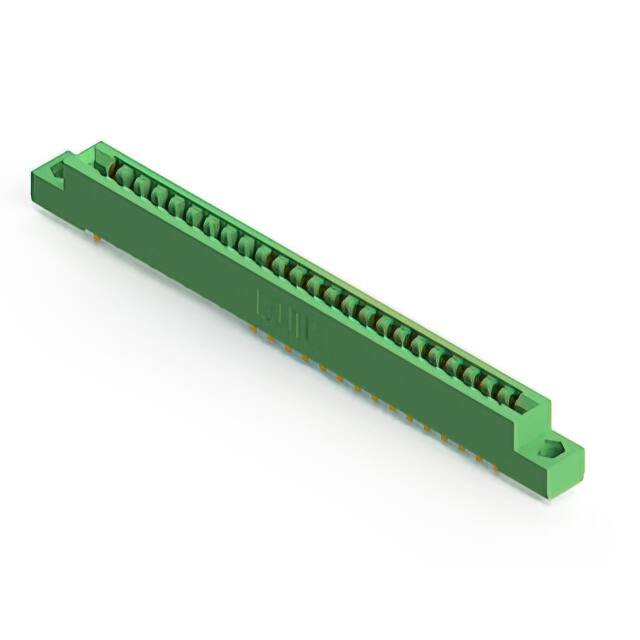

807-024-558-104

807-024-558-104
EDAC Inc.
807 HIGH TEMP' SERIES (.156" (3.
Card Edge Connectors - Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination Rows
1
Mfr
EDAC Inc.
Contact Material
Copper Alloy
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Pitch
0.156" (3.96mm)
Series
807
Number of Positions
24
Contact Finish Thickness
10.0µin (0.25µm)
Contact Type
Semi Bellows
Color
Green
Operating Temperature
-40°C ~ 125°C
Base Product Number
807-024
Number of Positions/Bay/Row
24
Mounting Type
Through Hole, Right Angle
Package
Box
Product Status
Active
Gender
Female
Features
-
Contact Finish
Gold
Termination
Solder
Material - Insulation
Diallyl Phthalate (DAP)
Card Type
Non Specified - Single Edge
Number of Rows
1
Read Out
Single
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
