807-024-559-108
807-024-559-108
Favorite Products
Share:

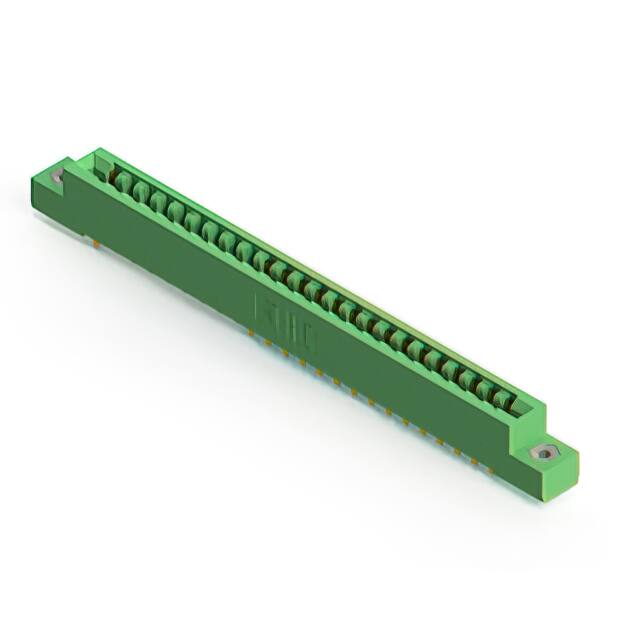

807-024-559-108

807-024-559-108
EDAC Inc.
CONN EDGE SGL FMALE 24POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Read Out
Single
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Material - Insulation
Diallyl Phthalate (DAP)
Gender
Female
Contact Finish Thickness
10.0µin (0.25µm)
Base Product Number
807-024
Pitch
0.156" (3.96mm)
Features
-
Contact Material
Copper Alloy
Contact Finish
Gold
Contact Type
Semi Bellows
Operating Temperature
-40°C ~ 125°C
Mfr
EDAC Inc.
Package
Box
Product Status
Active
Card Type
Non Specified - Single Edge
Number of Positions/Bay/Row
24
Number of Positions
24
Flange Feature
Flush Mount, Top Opening, Threaded Insert, 4-40
Termination Rows
1
Series
807
Termination
Solder
Number of Rows
1
Mounting Type
Through Hole, Right Angle
Color
Green
