807-039-541-103
807-039-541-103
Favorite Products
Share:

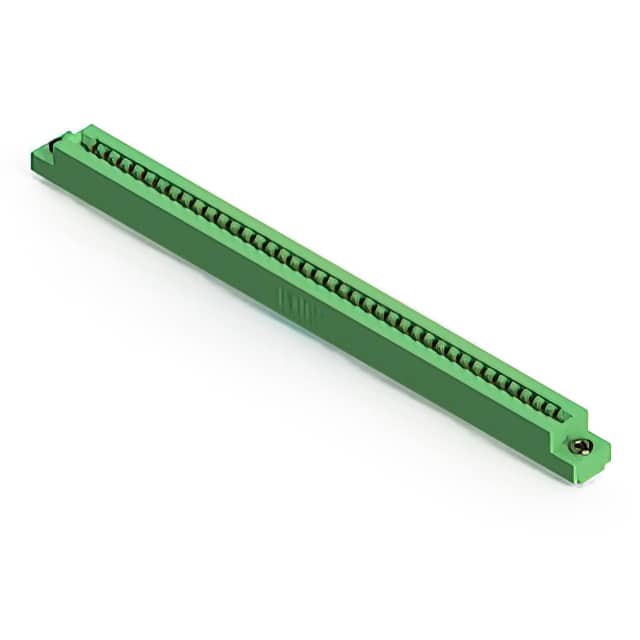

807-039-541-103

807-039-541-103
EDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions
78
Flange Feature
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Material - Insulation
Diallyl Phthalate (DAP)
Series
807
Number of Rows
2
Mounting Type
Through Hole
Package
Box
Product Status
Active
Read Out
Dual
Card Type
Non Specified - Dual Edge
Number of Positions/Bay/Row
39
Pitch
0.156" (3.96mm)
Features
-
Termination
Wire Wrap
Operating Temperature
-40°C ~ 125°C
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Mfr
EDAC Inc.
Contact Material
Copper Alloy
Gender
Female
Contact Finish Thickness
10.0µin (0.25µm)
Contact Finish
Gold
Contact Type
Semi Bellows
Color
Green
Termination Rows
1
Base Product Number
807-039
