826925-8
826925-8
826925-8
Favorite Products
Share:

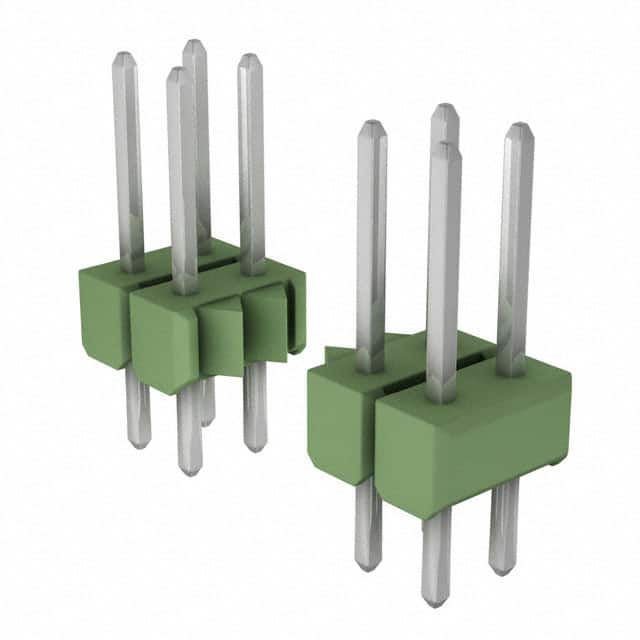

826925-8

826925-8
TE Connectivity AMP Connectors
CONN HEADER VERT 16POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header, Breakaway
Current Rating (Amps)
5A
Voltage Rating
-
Pitch - Mating
0.100" (2.54mm)
Style
Board to Board or Cable
Mounting Type
Through Hole
Contact Length - Post
0.126" (3.20mm)
Contact Shape
Square
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Mating
Tin
Ingress Protection
-
Fastening Type
Push-Pull
Contact Finish - Post
Tin
Series
AMPMODU Mod II
Features
-
Mfr
TE Connectivity AMP Connectors
Package
Bulk
Number of Positions
16
Shrouding
Unshrouded
Contact Length - Mating
0.264" (6.70mm)
Overall Contact Length
0.500" (12.70mm)
Contact Finish Thickness - Mating
78.7µin (2.00µm)
Applications
-
Product Status
Active
Contact Type
Male Pin
Termination
Solder
Contact Material
Copper Alloy
Operating Temperature
-65°C ~ 105°C
Mated Stacking Heights
-
Insulation Material
Polybutylene Terephthalate (PBT)
Insulation Color
Green
Contact Finish Thickness - Post
78.7µin (2.00µm)
Base Product Number
826925
Number of Rows
2
Number of Positions Loaded
All
Insulation Height
0.110" (2.79mm)
Material Flammability Rating
UL94 V-0
