842-086-559-202
842-086-559-202
Favorite Products
Share:

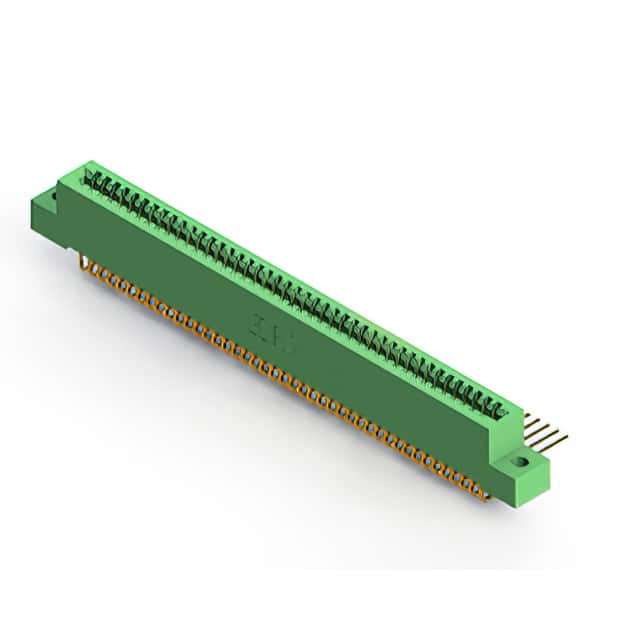

842-086-559-202

842-086-559-202
EDAC Inc.
CONN EDGE DUAL FMALE 86POS 0.100
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Series
842
Pitch
0.100" (2.54mm)
Termination Rows
2
Number of Positions
86
Card Type
Non Specified - Dual Edge
Product Status
Active
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Mfr
EDAC Inc.
Mounting Type
Through Hole, Right Angle
Contact Material
Copper Alloy
Gender
Female
Operating Temperature
-40°C ~ 125°C
Number of Positions/Bay/Row
43
Contact Finish
Gold
Color
Green
Package
Box
Termination
Solder
Contact Type
Cantilever
Features
-
Read Out
Dual
Base Product Number
842-086
Contact Finish Thickness
10.0µin (0.25µm)
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Number of Rows
2
Material - Insulation
Diallyl Phthalate (DAP)
