845-080-558-504
845-080-558-504
Favorite Products
Share:

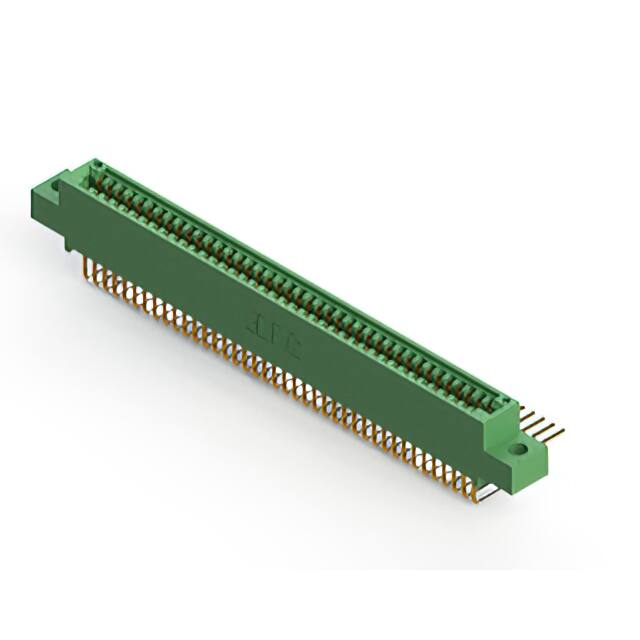

845-080-558-504

845-080-558-504
EDAC Inc.
CONN EDGE DUAL FMALE 80POS 0.100
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Read Out
Dual
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Type
Cantilever
Gender
Female
Pitch
0.100" (2.54mm)
Mounting Type
Through Hole, Right Angle
Contact Material
Copper Alloy
Contact Finish Thickness
10.0µin (0.25µm)
Color
Green
Number of Positions/Bay/Row
40
Flange Feature
Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Product Status
Active
Number of Positions
80
Features
-
Package
Box
Card Type
Non Specified - Dual Edge
Operating Temperature
-40°C ~ 125°C
Mfr
EDAC Inc.
Series
845
Number of Rows
2
Termination
Solder
Contact Finish
Gold
Base Product Number
845-080
Material - Insulation
Diallyl Phthalate (DAP)
Termination Rows
2
