845-086-525-207
845-086-525-207
Favorite Products
Share:

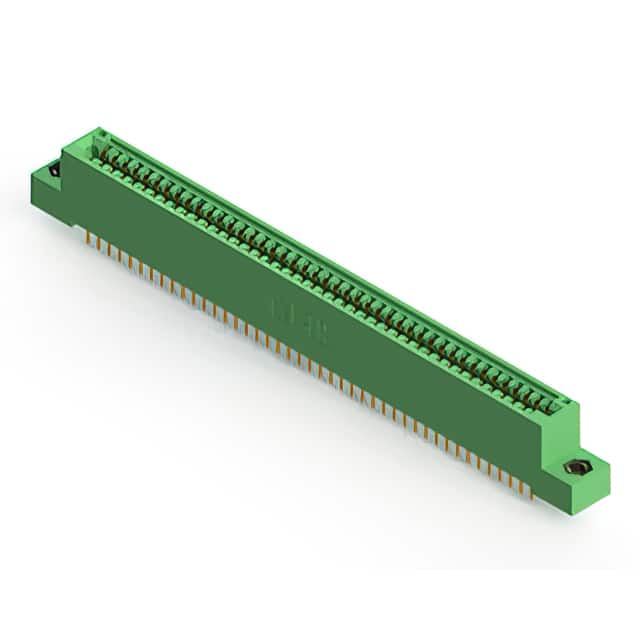

845-086-525-207

845-086-525-207
EDAC Inc.
CONN EDGE DUAL FMALE 86POS 0.100
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Series
845
Product Status
Active
Features
-
Color
Green
Package
Bulk
Gender
Female
Number of Positions
86
Number of Rows
2
Card Type
Non Specified - Dual Edge
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination Rows
2
Termination
Solder
Operating Temperature
-40°C ~ 125°C
Pitch
0.100" (2.54mm)
Contact Material
Copper Alloy
Contact Finish
Gold
Number of Positions/Bay/Row
43
Mounting Type
Through Hole
Contact Type
Cantilever
Mfr
EDAC Inc.
Read Out
Dual
Contact Finish Thickness
10.0µin (0.25µm)
Flange Feature
Flush Mount, Top Opening, Threaded Insert, M3
Material - Insulation
Diallyl Phthalate (DAP)
Base Product Number
845-086
