846-014-556-802
846-014-556-802
Favorite Products
Share:

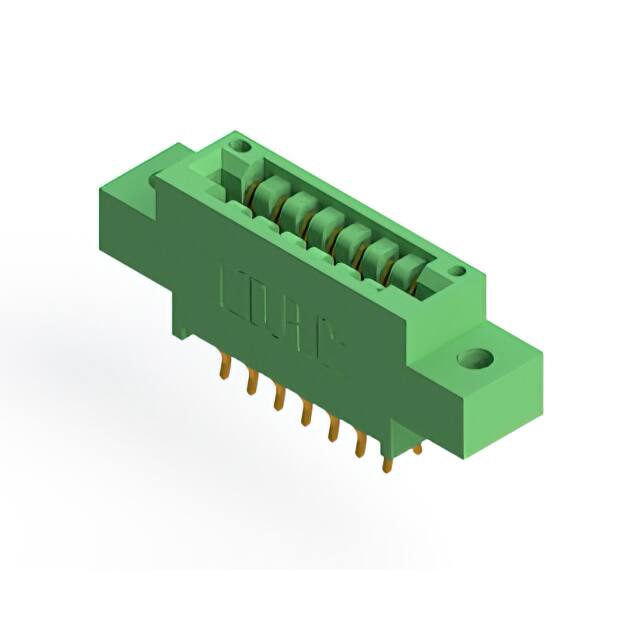

846-014-556-802

846-014-556-802
EDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Product Status
Active
Number of Rows
2
Number of Positions/Bay/Row
7
Read Out
Dual
Contact Type
Cantilever
Mfr
EDAC Inc.
Contact Finish Thickness
10.0µin (0.25µm)
Color
Green
Operating Temperature
-40°C ~ 125°C
Material - Insulation
Diallyl Phthalate (DAP)
Package
Box
Pitch
0.125" (3.18mm)
Gender
Female
Base Product Number
846-014
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions
14
Mounting Type
Board Edge, Straddle Mount
Contact Material
Copper Alloy
Flange Feature
Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination Rows
2
Card Type
Non Specified - Dual Edge
Contact Finish
Gold
Series
846
Features
Card Extender
Termination
Solder
