857-070-560-202
857-070-560-202
Favorite Products
Share:

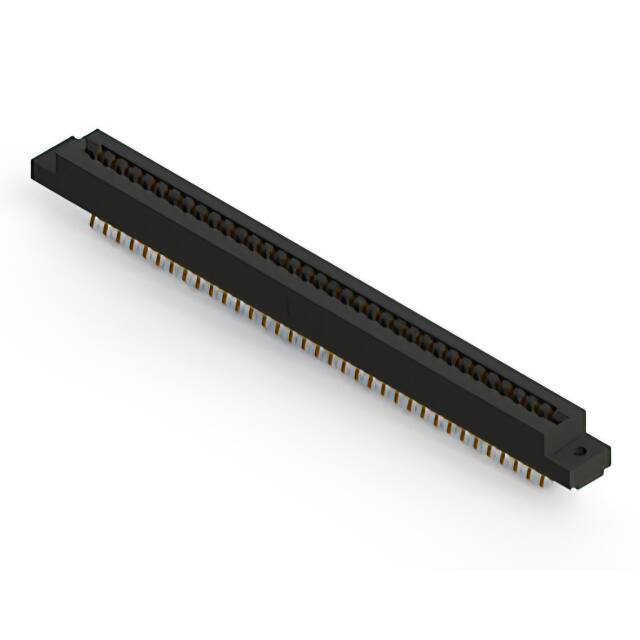

857-070-560-202

857-070-560-202
EDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Color
Black
Material - Insulation
Polyphenylene Sulfide (PPS)
Package
Bulk
Read Out
Dual
Features
Card Extender
Number of Rows
2
Mfr
EDAC Inc.
Number of Positions
70
Pitch
0.156" (3.96mm)
Contact Finish
Gold
Base Product Number
857-070
Contact Finish Thickness
10.0µin (0.25µm)
Series
857
Product Status
Active
Gender
Female
Number of Positions/Bay/Row
35
Mounting Type
Board Edge, Straddle Mount
Contact Material
Copper Alloy
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination
Solder
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination Rows
2
Card Type
Non Specified - Dual Edge
Contact Type
Semi Bellows
Operating Temperature
-40°C ~ 125°C
