896-014-500-204
896-014-500-204
Favorite Products
Share:

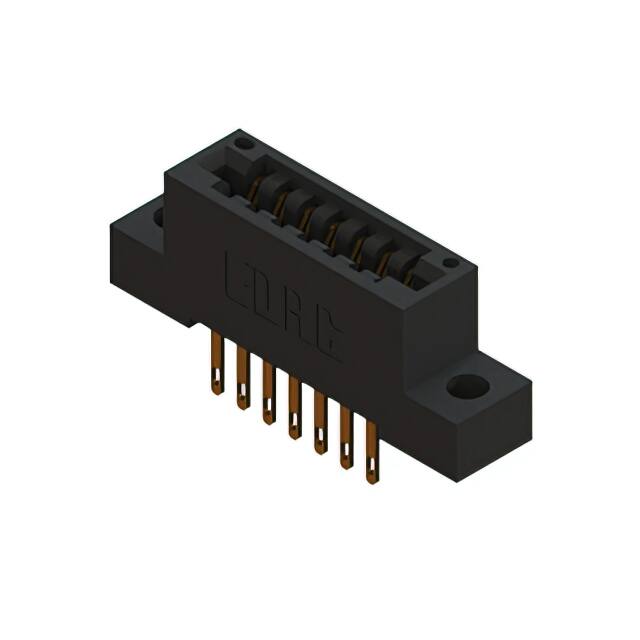

896-014-500-204

896-014-500-204
EDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Solder Eyelet(s)
Read Out
Dual
Contact Finish Thickness
10.0µin (0.25µm)
Mfr
EDAC Inc.
Number of Positions
14
Gender
Female
Number of Rows
2
Package
Bulk
Features
-
Mounting Type
Through Hole
Card Type
Non Specified - Dual Edge
Number of Positions/Bay/Row
7
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination Rows
2
Series
896
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Operating Temperature
-40°C ~ 125°C
Pitch
0.125" (3.18mm)
Contact Material
Copper Alloy
Contact Type
Cantilever
Color
Black
Product Status
Active
Contact Finish
Gold
Material - Insulation
Polyphenylene Sulfide (PPS)
Base Product Number
896-014
