896-026-540-603
896-026-540-603
Favorite Products
Share:

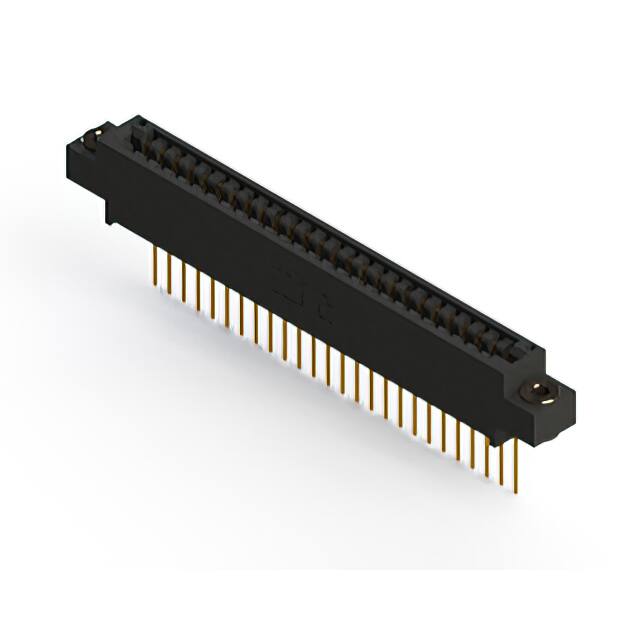

896-026-540-603

896-026-540-603
EDAC Inc.
CONN EDGE SGL FMALE 26POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Series
896
Card Type
Non Specified - Single Edge
Base Product Number
896-026
Read Out
Single
Termination Rows
1
Termination
Wire Wrap
Gender
Female
Package
Bulk
Pitch
0.125" (3.18mm)
Features
-
Mfr
EDAC Inc.
Number of Positions
26
Contact Material
Copper Alloy
Material - Insulation
Polyphenylene Sulfide (PPS)
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows
1
Contact Finish Thickness
10.0µin (0.25µm)
Contact Type
Cantilever
Product Status
Active
Number of Positions/Bay/Row
26
Contact Finish
Gold
Color
Black
Flange Feature
Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
