896-056-560-202
896-056-560-202
Favorite Products
Share:

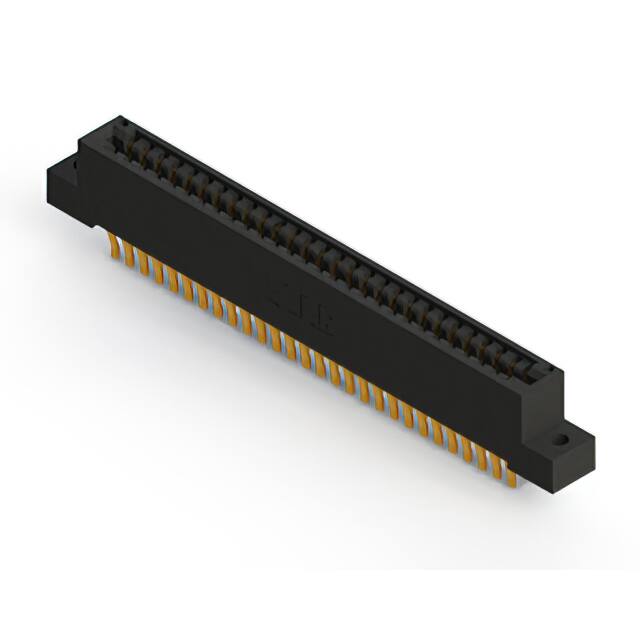

896-056-560-202

896-056-560-202
EDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Type
Cantilever
Number of Positions
56
Operating Temperature
-40°C ~ 125°C
Termination
Solder
Material - Insulation
Polyphenylene Sulfide (PPS)
Package
Bulk
Number of Positions/Bay/Row
28
Number of Rows
2
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Pitch
0.125" (3.18mm)
Product Status
Active
Gender
Female
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Read Out
Dual
Features
Card Extender
Mounting Type
Board Edge, Straddle Mount
Contact Finish
Gold
Contact Material
Copper Alloy
Contact Finish Thickness
10.0µin (0.25µm)
Color
Black
Mfr
EDAC Inc.
Base Product Number
896-056
Series
896
Card Type
Non Specified - Dual Edge
Termination Rows
2
