929648-05-26-EU
929648-05-26-EU
Favorite Products
Share:

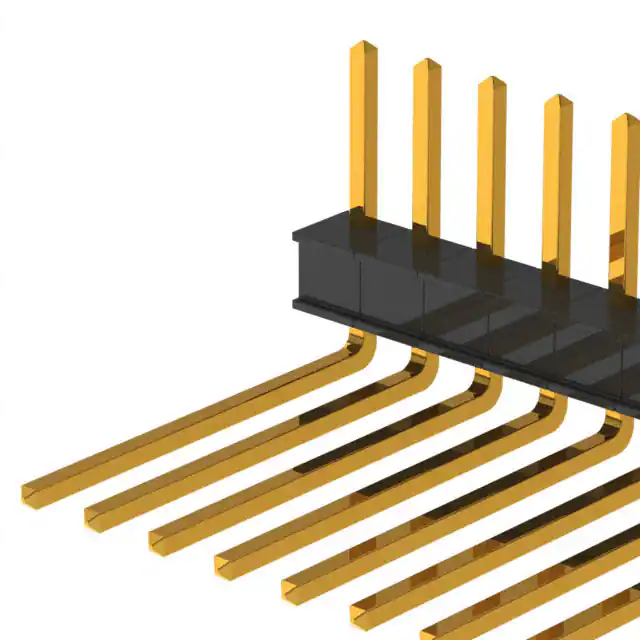

929648-05-26-EU

929648-05-26-EU
3M
CONN HEADER R/A 26POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Mated Stacking Heights
-
Contact Length - Post
0.520" (13.21mm)
Product Status
Active
Package
Bulk
Number of Positions
26
Insulation Height
0.115" (2.92mm)
Insulation Color
Black
Mfr
3M
Series
929
Connector Type
Header, Breakaway
Termination
Solder
Contact Length - Mating
0.235" (5.97mm)
Operating Temperature
-40°C ~ 105°C
Voltage Rating
-
Number of Rows
1
Contact Shape
Square
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Finish - Post
Gold
Row Spacing - Mating
-
Contact Material
Copper Alloy
Features
-
Contact Finish Thickness - Post
10.0µin (0.25µm)
Current Rating (Amps)
2.5A
Applications
-
Contact Type
Male Pin
Style
Board to Board
Material Flammability Rating
UL94 V-0
Overall Contact Length
-
Pitch - Mating
0.100" (2.54mm)
Shrouding
Unshrouded
Mounting Type
Through Hole, Right Angle
Contact Finish - Mating
Gold
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT)
Fastening Type
Push-Pull
Ingress Protection
-
Base Product Number
929648
