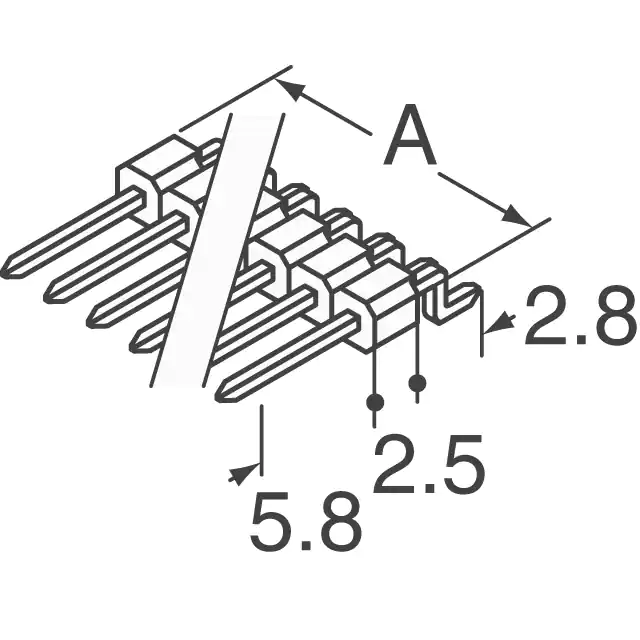

961116-5500-AR-PR
961116-5500-AR-PR
961116-5500-AR-PR
Favorite Products
Share:

961116-5500-AR-PR

961116-5500-AR-PR
3M
CONN HEADER SMD R/A 16POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Features
Pick and Place
Insulation Height
0.098" (2.50mm)
Number of Rows
1
Package
Tape & Reel (TR)^^Cut Tape (CT)
Insulation Material
Thermoplastic
Ingress Protection
-
Voltage Rating
-
Contact Finish Thickness - Post
39.4µin (1.00µm)
Base Product Number
961116
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Surface Mount, Right Angle
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Length - Post
-
Contact Finish - Post
Tin
Connector Type
Header
Number of Positions Loaded
All
Termination
Solder
Material Flammability Rating
UL94 V-0
Series
961
Operating Temperature
-25°C ~ 105°C
Mfr
3M
Contact Type
Male Pin
Shrouding
Unshrouded
Contact Finish Thickness - Mating
Flash
Contact Material
Copper Alloy
Applications
-
Row Spacing - Mating
-
Fastening Type
Push-Pull
Overall Contact Length
-
Product Status
Obsolete
Current Rating (Amps)
2A
Number of Positions
16
Style
Board to Board
Contact Length - Mating
0.230" (5.84mm)
Insulation Color
Black
Mated Stacking Heights
-
