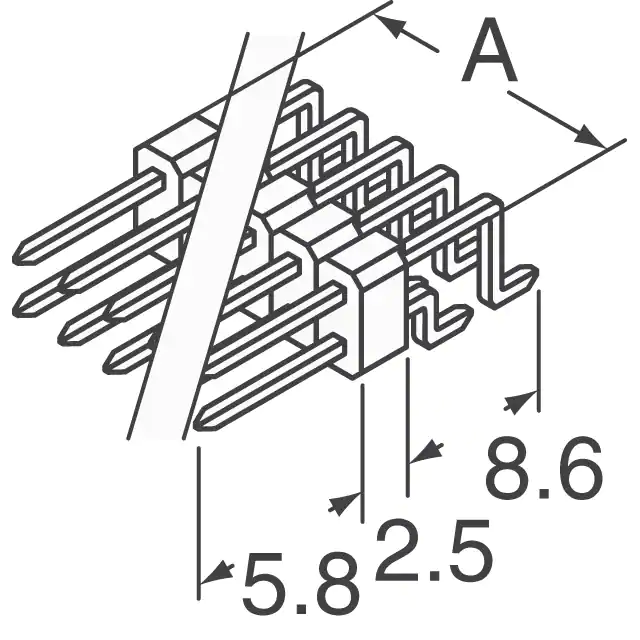

961230-5500-AR-PR
961230-5500-AR-PR
961230-5500-AR-PR
Favorite Products
Share:

961230-5500-AR-PR

961230-5500-AR-PR
3M
CONN HEADER SMD R/A 30POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Length - Post
-
Pitch - Mating
0.100" (2.54mm)
Contact Material
Copper Alloy
Voltage Rating
-
Shrouding
Unshrouded
Termination
Solder
Contact Finish - Post
Tin
Features
Pick and Place
Ingress Protection
-
Insulation Color
Black
Series
961
Connector Type
Header
Number of Positions
30
Number of Positions Loaded
All
Style
Board to Board
Contact Shape
Square
Material Flammability Rating
UL94 V-0
Product Status
Obsolete
Contact Type
Male Pin
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Mating
0.230" (5.84mm)
Contact Finish - Mating
Gold
Mfr
3M
Contact Finish Thickness - Mating
Flash
Mounting Type
Surface Mount, Right Angle
Fastening Type
Push-Pull
Insulation Height
0.197" (5.00mm)
Insulation Material
Thermoplastic
Current Rating (Amps)
2A
Mated Stacking Heights
-
Applications
-
Base Product Number
961230
Package
Tape & Reel (TR)^^Cut Tape (CT)
Number of Rows
2
Overall Contact Length
-
Operating Temperature
-25°C ~ 105°C
