B04B-JWPF-EK-R
B04B-JWPF-EK-R
B04B-JWPF-EK-R
B04B-JWPF-EK-R
Favorite Products
Share:

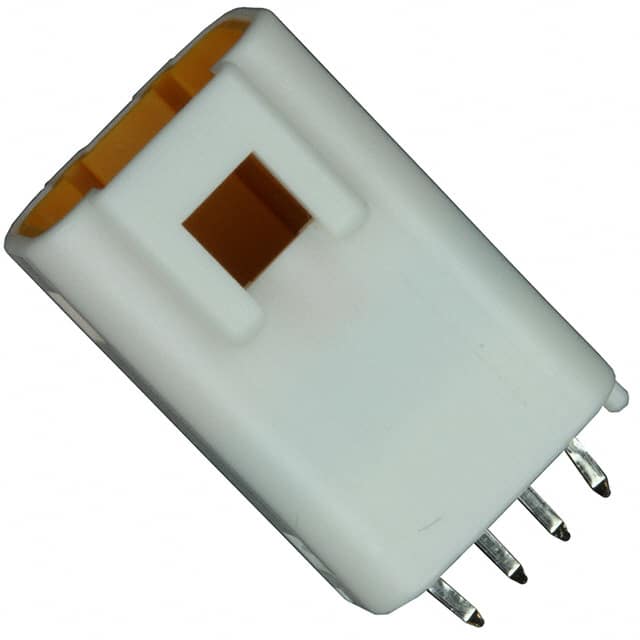

B04B-JWPF-EK-R

B04B-JWPF-EK-R
JST Sales America Inc.
CONN HEADER VERT 4POS 2MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Overall Contact Length
-
Contact Material
Copper Alloy
Contact Type
Male Pin
Operating Temperature
-55°C ~ 85°C
Fastening Type
Latch Holder
Contact Length - Post
0.130" (3.30mm)
Package
Bulk
Product Status
Active
Style
Board to Cable/Wire
Contact Finish Thickness - Mating
-
Mated Stacking Heights
21mm
Base Product Number
B04B-JWP

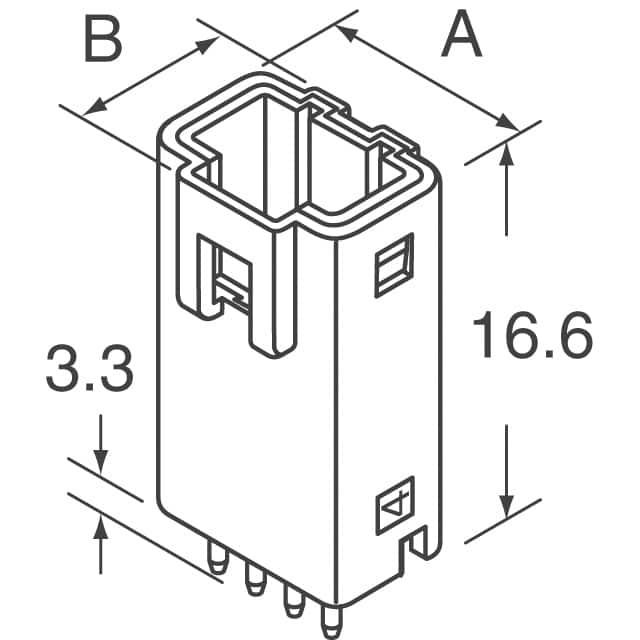

Insulation Height
0.654" (16.61mm)
Contact Shape
Square
Mfr
JST Sales America Inc.
Series
JWPF
Number of Rows
1
Row Spacing - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Number of Positions
4
Shrouding
Shrouded - 4 Wall
Termination
Kinked Pin, Solder
Contact Finish - Post
Tin
Current Rating (Amps)
3A
Contact Finish - Mating
Tin
Ingress Protection
Dust Tight, Waterproof
Insulation Color
Natural
Pitch - Mating
0.079" (2.00mm)
Features
Board Guide
Applications
-
Connector Type
Header
Mounting Type
Through Hole
Contact Length - Mating
-
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Voltage Rating
100V
Contact Finish Thickness - Post
-
