BBD-104-T-A
BBD-104-T-A
Favorite Products
Share:

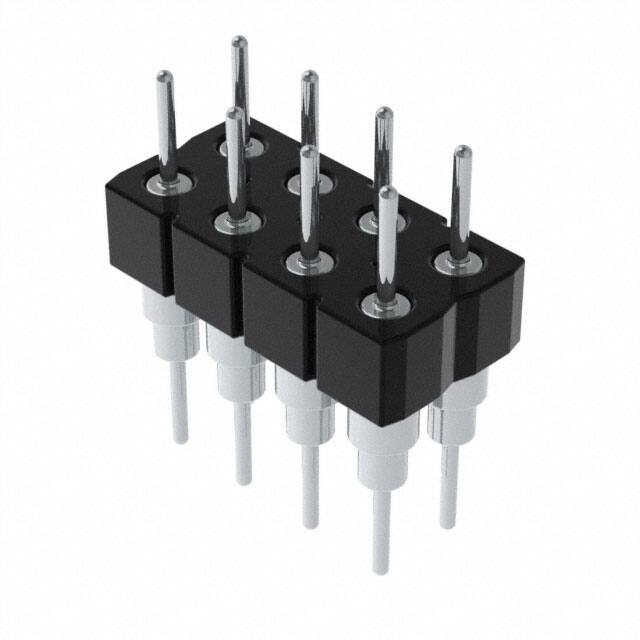

BBD-104-T-A

BBD-104-T-A
Samtec Inc.
CONN HEADER VERT 8POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Type
Male Pin
Shrouding
Unshrouded
Contact Finish Thickness - Mating
-
Series
BBD
Package
Tube
Row Spacing - Mating
0.100" (2.54mm)
Insulation Height
0.211" (5.35mm)
Current Rating (Amps)
-
Mfr
Samtec Inc.
Voltage Rating
-
Applications
-
Number of Positions
8
Mounting Type
Through Hole
Contact Shape
Circular
Contact Finish - Mating
Tin
Ingress Protection
-
Connector Type
Header
Number of Positions Loaded
All
Contact Length - Mating
0.125" (3.18mm)
Features
-
Operating Temperature
-55°C ~ 125°C
Product Status
Active
Overall Contact Length
0.460" (11.68mm)
Insulation Material
Polyester, Glass Filled
Contact Length - Post
0.125" (3.18mm)
Contact Finish Thickness - Post
50.0µin (1.27µm)
Pitch - Mating
0.100" (2.54mm)
Style
Board to Board
Contact Finish - Post
Nickel
Contact Material
-
Material Flammability Rating
-
Insulation Color
Black
Mated Stacking Heights
-
Number of Rows
2
Termination
Solder
Fastening Type
Push-Pull
Base Product Number
BBD-104
