BBD-112-G-C
BBD-112-G-C
Favorite Products
Share:

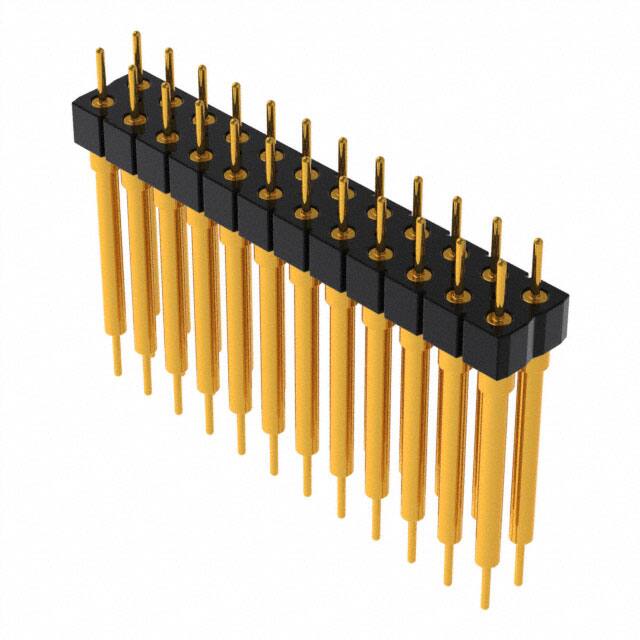

BBD-112-G-C

BBD-112-G-C
Samtec Inc.
CONN HEADER VERT 24POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Post
50.0µin (1.27µm)
Row Spacing - Mating
0.100" (2.54mm)
Shrouding
Unshrouded
Fastening Type
Push-Pull
Contact Shape
Circular
Contact Material
-
Insulation Material
Polyester, Glass Filled
Contact Finish - Post
Nickel
Ingress Protection
-
Connector Type
Header
Number of Positions
24
Contact Length - Post
0.125" (3.18mm)
Insulation Height
0.585" (14.86mm)
Contact Finish Thickness - Mating
20.0µin (0.51µm)
Features
-
Current Rating (Amps)
-
Voltage Rating
-
Number of Rows
2
Style
Board to Board
Overall Contact Length
0.835" (21.21mm)
Mated Stacking Heights
-
Contact Type
Male Pin
Material Flammability Rating
-
Series
BBD
Product Status
Active
Number of Positions Loaded
All
Contact Length - Mating
0.125" (3.18mm)
Insulation Color
Black
Base Product Number
BBD-112
Termination
Solder
Contact Finish - Mating
Gold
Mfr
Samtec Inc.
Package
Tube
Mounting Type
Through Hole
Operating Temperature
-55°C ~ 125°C
