BBD-113-G-G
BBD-113-G-G
Favorite Products
Share:

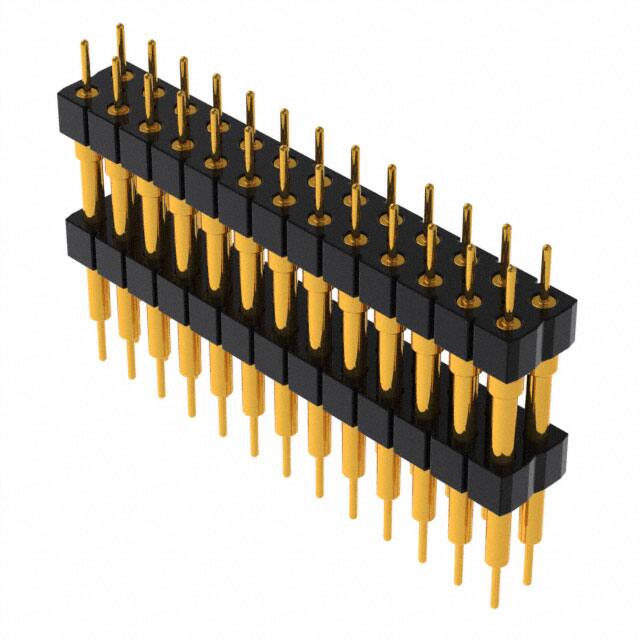

BBD-113-G-G

BBD-113-G-G
Samtec Inc.
CONN HEADER VERT 26POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header
Overall Contact Length
0.835" (21.21mm)
Voltage Rating
-
Mfr
Samtec Inc.
Style
Board to Board
Insulation Material
Polyester, Glass Filled
Contact Length - Post
0.125" (3.18mm)
Contact Finish - Mating
Gold
Product Status
Active
Contact Shape
Circular
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Mating
0.125" (3.18mm)
Current Rating (Amps)
-
Mounting Type
Through Hole
Fastening Type
Push-Pull
Series
BBD
Number of Positions
26
Contact Finish - Post
Nickel
Operating Temperature
-55°C ~ 125°C
Insulation Color
Black
Applications
-
Pitch - Mating
0.100" (2.54mm)
Number of Rows
2
Number of Positions Loaded
All
Ingress Protection
-
Material Flammability Rating
-
Package
Tube
Shrouding
Unshrouded
Contact Finish Thickness - Mating
20.0µin (0.51µm)
Mated Stacking Heights
-
Contact Finish Thickness - Post
50.0µin (1.27µm)
Contact Type
Male Pin
Termination
Solder
Insulation Height
0.585" (14.86mm)
Contact Material
-
Base Product Number
BBD-113
