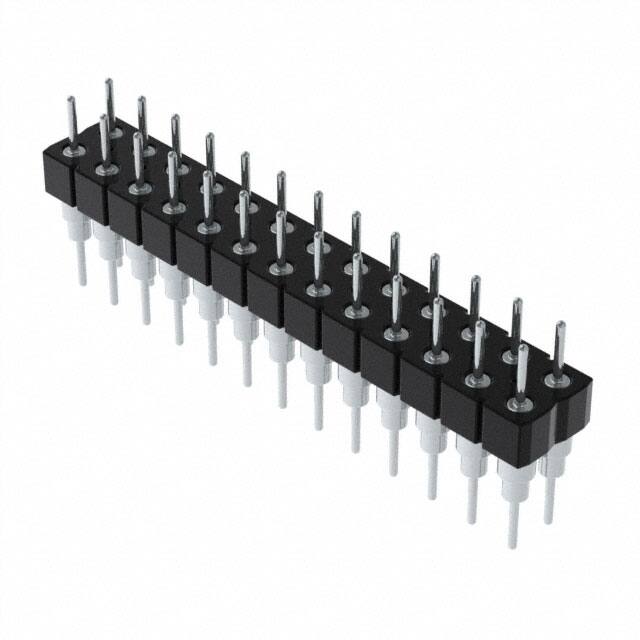

BBD-113-T-A
BBD-113-T-A
Favorite Products
Share:

BBD-113-T-A

BBD-113-T-A
Samtec Inc.
CONN HEADER VERT 26POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header
Contact Finish Thickness - Post
50.0µin (1.27µm)
Current Rating (Amps)
-
Number of Positions
26
Shrouding
Unshrouded
Mounting Type
Through Hole
Insulation Height
0.211" (5.35mm)
Ingress Protection
-
Base Product Number
BBD-113
Contact Length - Post
0.125" (3.18mm)
Contact Finish - Mating
Tin
Product Status
Active
Number of Rows
2
Features
-
Mated Stacking Heights
-
Series
BBD
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Style
Board to Board
Row Spacing - Mating
0.100" (2.54mm)
Overall Contact Length
0.460" (11.68mm)
Operating Temperature
-55°C ~ 125°C
Insulation Material
Polyester, Glass Filled
Fastening Type
Push-Pull
Contact Length - Mating
0.125" (3.18mm)
Contact Finish - Post
Nickel
Contact Material
-
Insulation Color
Black
Voltage Rating
-
Applications
-
Termination
Solder
Contact Shape
Circular
Contact Finish Thickness - Mating
-
Mfr
Samtec Inc.
Package
Tube
Contact Type
Male Pin
Material Flammability Rating
-
