BBD-115-G-D
BBD-115-G-D
Favorite Products
Share:

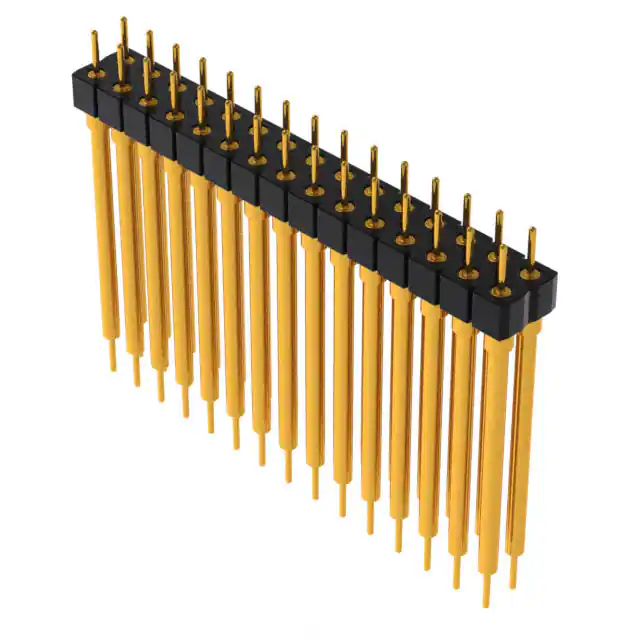

BBD-115-G-D

BBD-115-G-D
Samtec Inc.
CONN HEADER VERT 30POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Number of Positions
30
Base Product Number
BBD-115
Overall Contact Length
1.085" (27.56mm)
Voltage Rating
-
Series
BBD
Style
Board to Board
Current Rating (Amps)
-
Contact Finish Thickness - Post
50.0µin (1.27µm)
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
20.0µin (0.51µm)
Insulation Color
Black
Mfr
Samtec Inc.
Contact Type
Male Pin
Insulation Material
Polyester, Glass Filled
Pitch - Mating
0.100" (2.54mm)
Shrouding
Unshrouded
Mounting Type
Through Hole
Insulation Height
0.835" (21.21mm)
Contact Shape
Circular
Operating Temperature
-55°C ~ 125°C
Termination
Solder
Fastening Type
Push-Pull
Features
-
Applications
-
Package
Tube
Contact Length - Mating
0.125" (3.18mm)
Contact Length - Post
0.125" (3.18mm)
Contact Finish - Post
Nickel
Contact Material
-
Ingress Protection
-
Material Flammability Rating
-
Mated Stacking Heights
-
Product Status
Active
Connector Type
Header
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
