BBD-125-G-D
BBD-125-G-D
Favorite Products
Share:

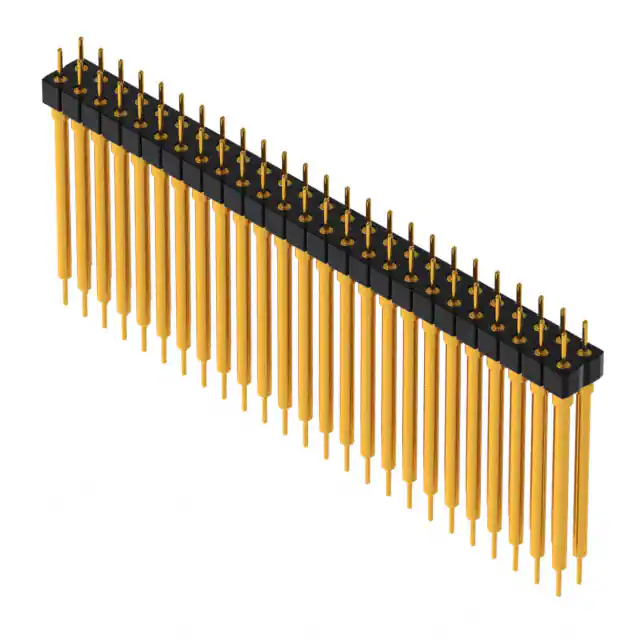

BBD-125-G-D

BBD-125-G-D
Samtec Inc.
CONN HEADER VERT 50POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Mating
0.125" (3.18mm)
Insulation Height
0.835" (21.21mm)
Features
-
Product Status
Active
Mounting Type
Through Hole
Contact Length - Post
0.125" (3.18mm)
Voltage Rating
-
Mated Stacking Heights
-
Mfr
Samtec Inc.
Pitch - Mating
0.100" (2.54mm)
Overall Contact Length
1.085" (27.56mm)
Contact Finish - Mating
Gold
Applications
-
Base Product Number
BBD-125
Style
Board to Board
Shrouding
Unshrouded
Ingress Protection
-
Contact Type
Male Pin
Contact Shape
Circular
Contact Material
-
Number of Positions
50
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Nickel
Insulation Material
Polyester, Glass Filled
Current Rating (Amps)
-
Series
BBD
Connector Type
Header
Termination
Solder
Contact Finish Thickness - Mating
20.0µin (0.51µm)
Contact Finish Thickness - Post
50.0µin (1.27µm)
Operating Temperature
-55°C ~ 125°C
Package
Tube
Material Flammability Rating
-
Number of Positions Loaded
All
Fastening Type
Push-Pull
Insulation Color
Black
