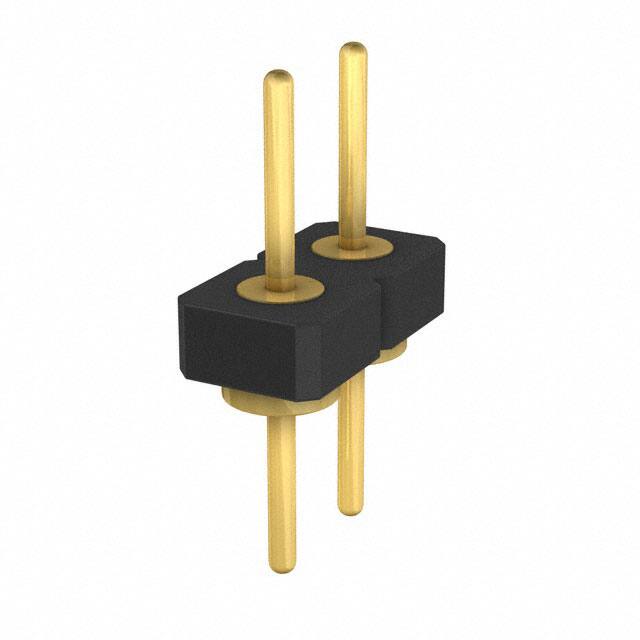

BDL-101-G-F
BDL-101-G-F
Favorite Products
Share:

BDL-101-G-F

BDL-101-G-F
Samtec Inc.
CONN HEADER VERT 2POS
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Contact Finish Thickness - Mating
20.0µin (0.51µm)
Contact Finish Thickness - Post
-
Series
BDL
Features
-
Connector Type
Header
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Applications
-
Contact Length - Post
0.125" (3.18mm)
Ingress Protection
-
Product Status
Active
Number of Positions
2
Mounting Type
Through Hole
Pitch - Mating
-
Voltage Rating
-
Mfr
Samtec Inc.
Contact Type
Male Pin
Number of Rows
2
Contact Length - Mating
0.122" (3.10mm)
Insulation Height
0.085" (2.15mm)
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Package
Bulk
Style
Board to Board
Shrouding
Unshrouded
Contact Finish - Post
Gold
Insulation Material
Polyamide (PA), Nylon
Base Product Number
BDL-101
Row Spacing - Mating
0.100" (2.54mm)
Overall Contact Length
0.332" (8.43mm)
Contact Material
-
Material Flammability Rating
-
Insulation Color
Black
Termination
Solder
Contact Shape
Circular
Current Rating (Amps)
-
