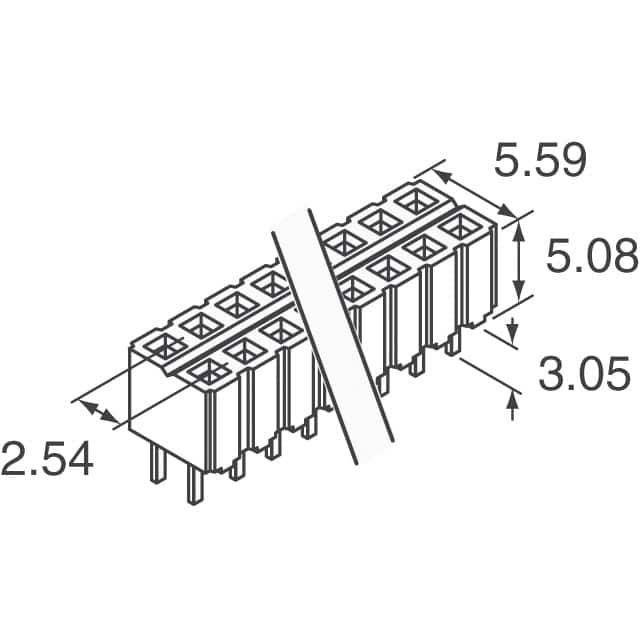

CES-114-01-T-D
CES-114-01-T-D
CES-114-01-T-D
Favorite Products
Share:

CES-114-01-T-D

CES-114-01-T-D
Samtec Inc.
CONN RCPT 28POS 0.1 TIN PCB
Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Features
-
Contact Material
Phosphor Bronze
Fastening Type
Push-Pull
Applications
-
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Mating
Tin
Package
Bulk
Connector Type
Receptacle
Number of Positions Loaded
All
Pitch - Mating
0.100" (2.54mm)
Insulation Color
Black
Material Flammability Rating
UL94 V-0
Base Product Number
CES-114
Series
CES
Product Status
Active
Contact Length - Post
0.128" (3.25mm)
Contact Finish Thickness - Post
-
Insulation Material
Polybutylene Terephthalate (PBT)
Contact Type
Female Socket
Mounting Type
Through Hole
Voltage Rating
-
Contact Shape
Square
Style
Board to Board
Operating Temperature
-55°C ~ 105°C
Mfr
Samtec Inc.
Termination
Solder
Insulation Height
0.200" (5.08mm)
Number of Positions
28
Number of Rows
2
Contact Finish Thickness - Mating
-
Mated Stacking Heights
-
Current Rating (Amps)
-
Contact Finish - Post
Tin
Ingress Protection
-
