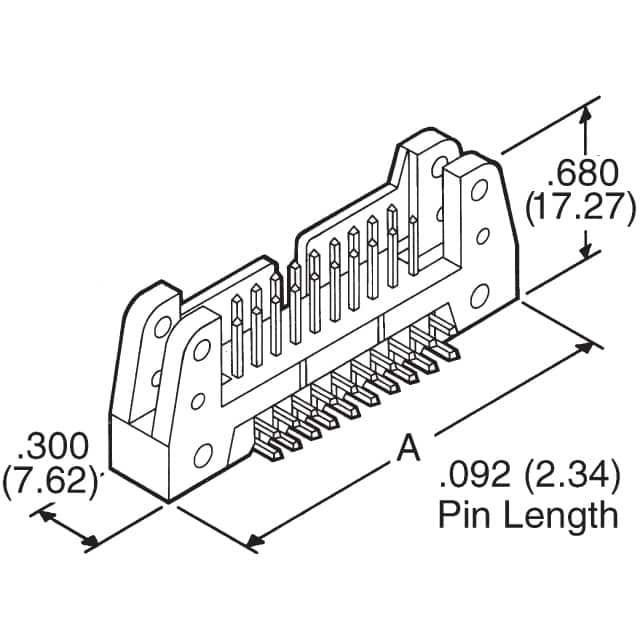

CWN-300-14-0000
CWN-300-14-0000
CWN-300-14-0000
Favorite Products
Share:

CWN-300-14-0000

CWN-300-14-0000
CW Industries
CONN HEADER R/A 14POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Color
Blue
Package
Bulk
Operating Temperature
-55°C ~ 125°C
Base Product Number
CWN-300
Contact Length - Mating
0.240" (6.10mm)
Contact Type
Male Pin
Series
CWN
Overall Contact Length
-
Insulation Height
0.291" (7.40mm)
Connector Type
Header
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Style
Board to Cable/Wire
Mounting Type
Through Hole, Right Angle
Current Rating (Amps)
1A
Number of Positions Loaded
All
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Material
Phosphor Bronze
Contact Finish Thickness - Post
50.0µin (1.27µm)
Pitch - Mating
0.100" (2.54mm)
Number of Positions
14
Shrouding
Shrouded - 4 Wall
Features
Keying Slot, Mounting Flange
Mated Stacking Heights
-
Termination
Solder
Insulation Material
Thermoplastic
Contact Shape
Circular
Material Flammability Rating
UL94 V-0
Mfr
CW Industries
Product Status
Active
Contact Length - Post
0.090" (2.29mm)
Contact Finish - Post
Nickel
Ingress Protection
-
Voltage Rating
-
Applications
-
