CWN-370-20-0000
CWN-370-20-0000
CWN-370-20-0000
CWN-370-20-0000
Favorite Products
Share:

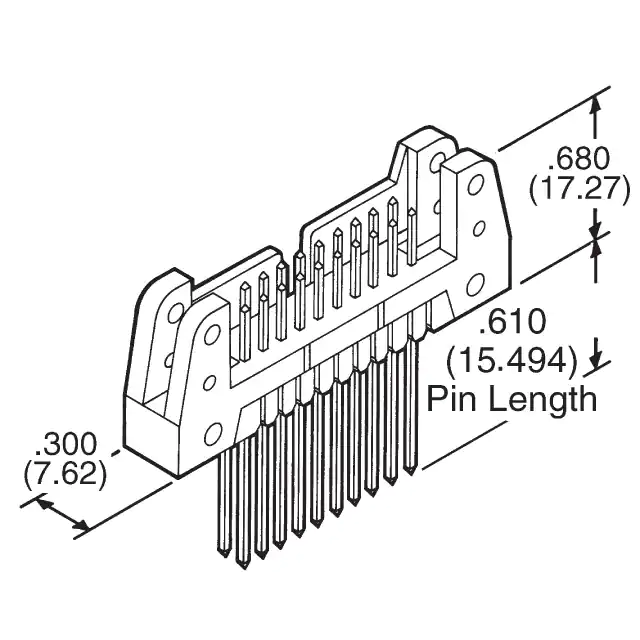

CWN-370-20-0000

CWN-370-20-0000
CW Industries
CONN HEADER VERT 20POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.100" (2.54mm)
Contact Type
Male Pin
Shrouding
Shrouded - 4 Wall
Insulation Height
0.681" (17.30mm)
Mated Stacking Heights
-
Base Product Number
CWN-370
Mounting Type
Through Hole
Applications
-
Series
CWN
Connector Type
Header
Number of Rows
2
Style
Board to Cable/Wire
Contact Shape
Circular
Product Status
Active
Overall Contact Length
-
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Finish Thickness - Post
50.0µin (1.27µm)
Contact Finish - Post
Nickel
Ingress Protection
-
Insulation Color
Blue
Mfr
CW Industries
Termination
Wire Wrap
Fastening Type
Push-Pull
Contact Length - Mating
0.240" (6.10mm)
Contact Finish - Mating
Gold
Contact Material
Phosphor Bronze
Voltage Rating
-
Pitch - Mating
0.100" (2.54mm)
Contact Length - Post
0.610" (15.49mm)
Current Rating (Amps)
1A
Number of Positions
20
Material Flammability Rating
UL94 V-0
Package
Bulk
Number of Positions Loaded
All
Insulation Material
Thermoplastic
Features
Keying Slot, Mounting Flange
Operating Temperature
-55°C ~ 125°C
