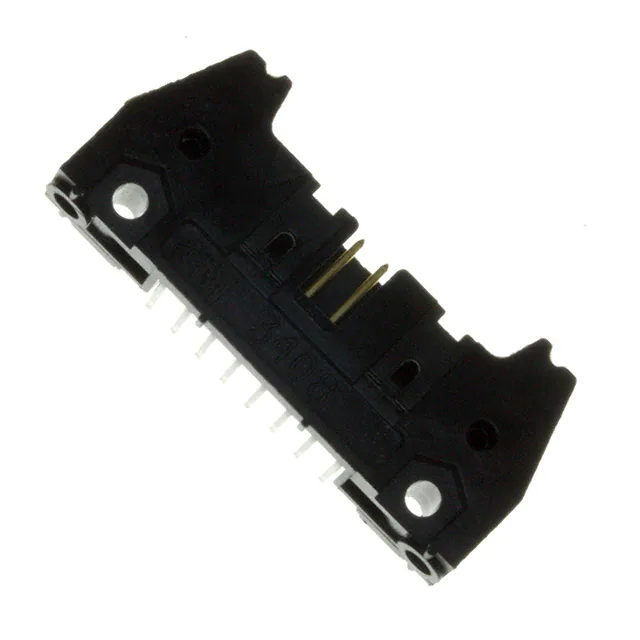

D3408-5002-AR
D3408-5002-AR
Favorite Products
Share:

D3408-5002-AR

D3408-5002-AR
3M
CONN HEADER R/A 16POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Length - Post
0.112" (2.84mm)
Current Rating (Amps)
1.75A
Package
Tray
Series
D3000
Termination
Solder
Overall Contact Length
-
Features
Keying Slot, Mounting Flange
Insulation Color
Black
Mated Stacking Heights
-
Insulation Height
0.340" (8.64mm)
Style
Board to Cable/Wire
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Number of Positions
16
Number of Rows
2
Shrouding
Shrouded - 4 Wall
Contact Material
Brass
Material Flammability Rating
UL94 V-0
Mfr
3M
Contact Shape
Square
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Base Product Number
D3408
Product Status
Active
Fastening Type
Push-Pull
Operating Temperature
-55°C ~ 105°C
Contact Length - Mating
0.240" (6.10mm)
Voltage Rating
-
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Contact Finish - Mating
Gold
Contact Finish - Post
Tin
Ingress Protection
-
Applications
-
