DF1BZ-11P-2-5DSA
DF1BZ-11P-2-5DSA
DF1BZ-11P-2-5DSA
Favorite Products
Share:

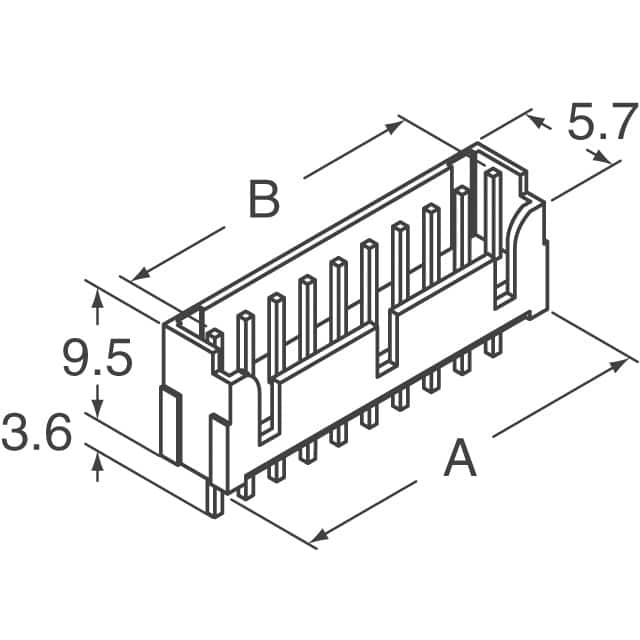

DF1BZ-11P-2-5DSA

DF1BZ-11P-2-5DSA
Hirose Electric Co Ltd
CONN HEADER VERT 11POS 2.5MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Package
Bulk
Insulation Material
Polyamide (PA), Nylon
Current Rating (Amps)
-
Ingress Protection
-
Contact Length - Mating
0.177" (4.50mm)
Insulation Height
0.374" (9.50mm)
Connector Type
Header
Contact Type
Male Pin
Contact Shape
Square
Shrouding
Shrouded - 4 Wall
Features
Keying Slot
Base Product Number
DF1B
Number of Rows
1
Number of Positions Loaded
All
Termination
Solder
Fastening Type
Push-Pull
Pitch - Mating
0.098" (2.50mm)
Number of Positions
11
Contact Material
Brass
Insulation Color
White
Voltage Rating
250V
Applications
-
Row Spacing - Mating
-
Overall Contact Length
0.417" (10.60mm)
Operating Temperature
-35°C ~ 85°C
Series
DF1B
Contact Length - Post
0.142" (3.60mm)
Contact Finish - Mating
Tin
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
14mm
Style
Board to Cable/Wire
Mounting Type
Through Hole
Contact Finish - Post
Tin
Contact Finish Thickness - Post
-
Product Status
Active
Contact Finish Thickness - Mating
39.4µin (1.00µm)
Mfr
Hirose Electric Co Ltd
