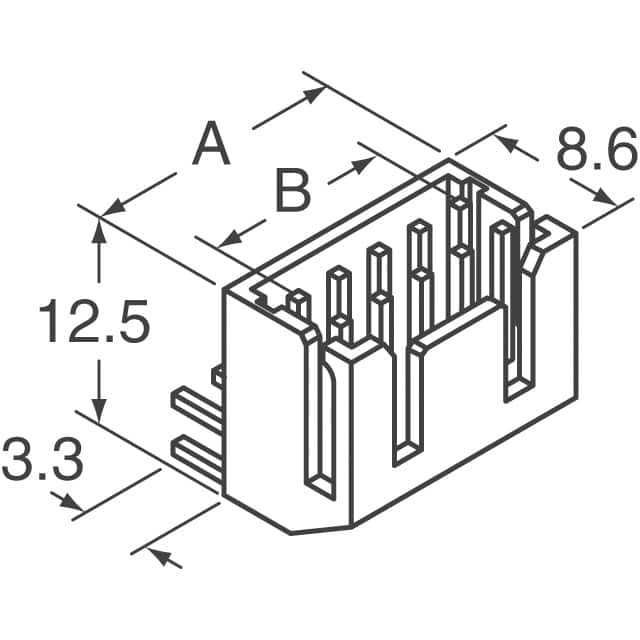

DF1BZ-14DP-2-5DS
DF1BZ-14DP-2-5DS
DF1BZ-14DP-2-5DS
DF1BZ-14DP-2-5DS
Favorite Products
Share:

DF1BZ-14DP-2-5DS

DF1BZ-14DP-2-5DS
Hirose Electric Co Ltd
CONN HEADER R/A 14POS 2.5MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Contact Finish - Post
Tin
Mfr
Hirose Electric Co Ltd
Ingress Protection
-
Contact Finish Thickness - Post
-
Applications
-
Number of Rows
2
Contact Material
Brass
Product Status
Active
Connector Type
Header
Pitch - Mating
0.098" (2.50mm)
Fastening Type
Push-Pull
Overall Contact Length
-
Contact Finish Thickness - Mating
39.4µin (1.00µm)
Current Rating (Amps)
-
Contact Type
Male Pin
Insulation Height
0.339" (8.61mm)
Contact Shape
Square
Features
Keying Slot
Operating Temperature
-35°C ~ 85°C
Insulation Color
White
Series
DF1B
Insulation Material
Polyamide (PA), Nylon
Package
Bulk
Number of Positions
14
Row Spacing - Mating
0.098" (2.50mm)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Length - Mating
0.177" (4.50mm)
Contact Length - Post
0.130" (3.30mm)
Voltage Rating
150V
Mated Stacking Heights
-
Mounting Type
Through Hole, Right Angle
Contact Finish - Mating
Tin
Material Flammability Rating
UL94 V-0
Base Product Number
DF1B
Style
Board to Cable/Wire
