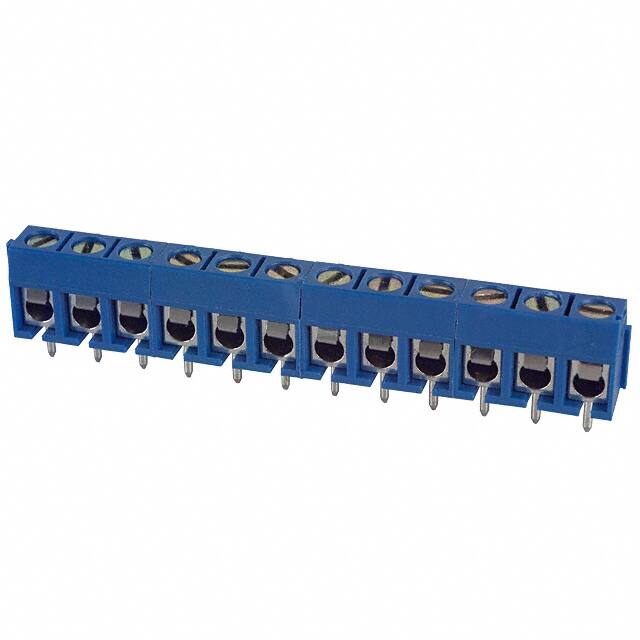

ED500-12DS
ED500-12DS
ED500-12DS
Favorite Products
Share:

ED500-12DS

ED500-12DS
On Shore Technology Inc.
TERM BLK 12P SIDE ENTRY 5MM PCB
Wire to Board
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Current
15 A
Mounting Type
Through Hole
Voltage
300 V
Features
-
Housing Material
Polyamide (PA), Nylon
Positions Per Level
12
Pitch
0.197" (5.00mm)
Wire Gauge
14-22 AWG
Operating Temperature
-30°C ~ 105°C
Mfr
On Shore Technology Inc.
Series
ED500/DS
Product Status
Active
Color
Blue
Clamp Material - Plating
Steel, Stainless
Screw Thread
M2.6
Base Product Number
ED500
Mating Orientation
Horizontal with Board
Wire Termination
Screw - Leaf Spring, Wire Guard
Screw Material - Plating
-
Package
Bulk
Number of Levels
1
Contact Material - Plating
Brass
Torque - Screw
0.4 Nm (3.5 Lb-In)
