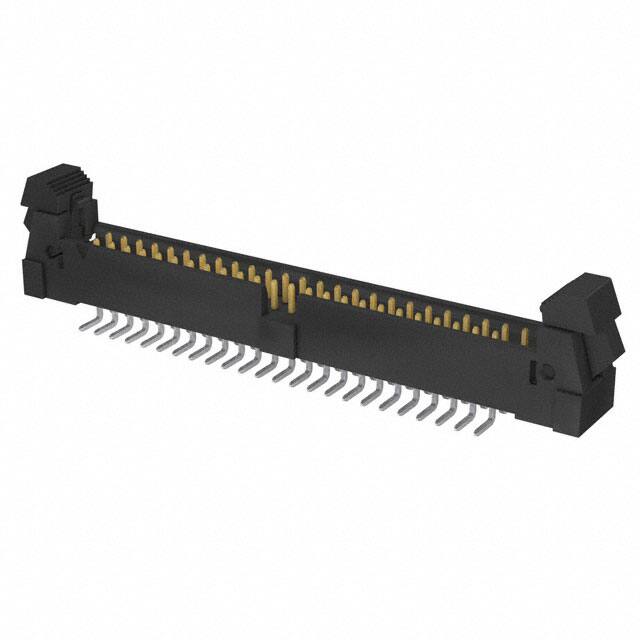

EHT-125-01-S-D-SM-49-P-TR
EHT-125-01-S-D-SM-49-P-TR
Favorite Products
Share:

EHT-125-01-S-D-SM-49-P-TR

EHT-125-01-S-D-SM-49-P-TR
Samtec Inc.
CONN HEADER SMD 50POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Package
Tape & Reel (TR)
Contact Shape
Square
Ingress Protection
-
Fastening Type
Latch Lock/Eject Hooks
Number of Positions Loaded
49
Contact Material
Phosphor Bronze
Voltage Rating
-
Contact Finish - Post
Tin
Insulation Material
Liquid Crystal Polymer (LCP)
Product Status
Active
Connector Type
Header
Contact Type
Male Pin
Style
Board to Cable/Wire
Number of Positions
50
Number of Rows
2
Contact Length - Post
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Features
Keying Slot, Pick and Place
Insulation Color
Black
Contact Finish Thickness - Post
-
Contact Length - Mating
0.120" (3.05mm)
Material Flammability Rating
UL94 V-0
Shrouding
Shrouded - 4 Wall
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
3A
Base Product Number
EHT-125
Pitch - Mating
0.079" (2.00mm)
Row Spacing - Mating
0.079" (2.00mm)
Termination
Solder
Contact Finish - Mating
Gold
Mated Stacking Heights
-
Applications
-
Series
EHT
Mounting Type
Surface Mount
Overall Contact Length
-
Insulation Height
0.370" (9.40mm)
Mfr
Samtec Inc.
