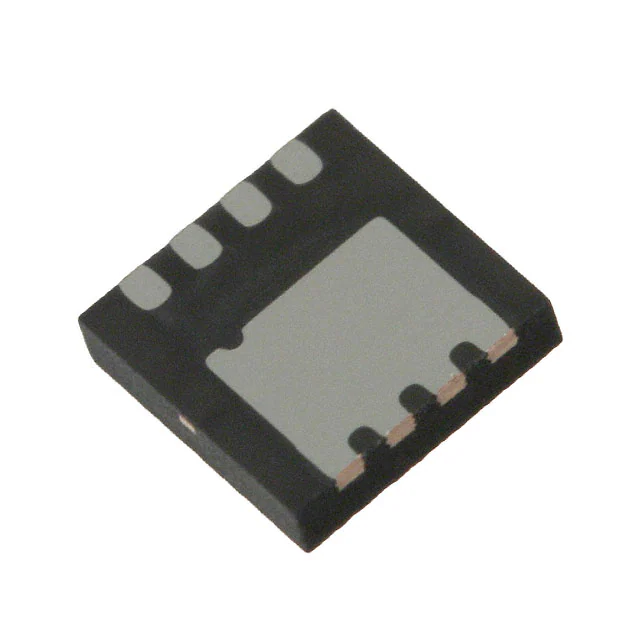

FDMC7692S-F127

Product Name FDMC7692S-F127

Manufacturer onsemi

Describe MOSFET N-CH 30V 12.5A/18A 8MLP

Classification: Transistors - FETs, MOSFETs - Single

Stock Available

RoHs:

RoHS Compliant

Datasheet

Datasheet

Customer Reference

Available In Stock

Please send RFQ, we will respond immediately

Just Fill in the content with an*

Contact Information

(You can also Log In and fill in automatically)

Message Content *

*

Company Name

*

Contact Name

*

Telephone

*

Email *

*

Product Attributes

Type PARAMETERS

Gate Charge (Qg) (Max) @ Vgs

23 nC @ 10 V

Supplier Device Package

8-MLP (3.3x3.3)

Vgs(th) (Max) @ Id

3V @ 1mA

Base Product Number

FDMC76

FET Type

N-Channel

Mfr

onsemi

Series

PowerTrench®

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30 V

Package / Case

8-PowerWDFN

FET Feature

-

Package

Tape & Reel (TR)^^Cut Tape (CT)

Rds On (Max) @ Id, Vgs

9.3mOhm @ 12.5A, 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

1385 pF @ 15 V

Mounting Type

Surface Mount

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Power Dissipation (Max)

2.3W (Ta), 27W (Tc)

Product Status

Obsolete

Current - Continuous Drain (Id) @ 25°C

12.5A (Ta), 18A (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)
