FDMS7680
FDMS7680
FDMS7680
Favorite Products
Share:

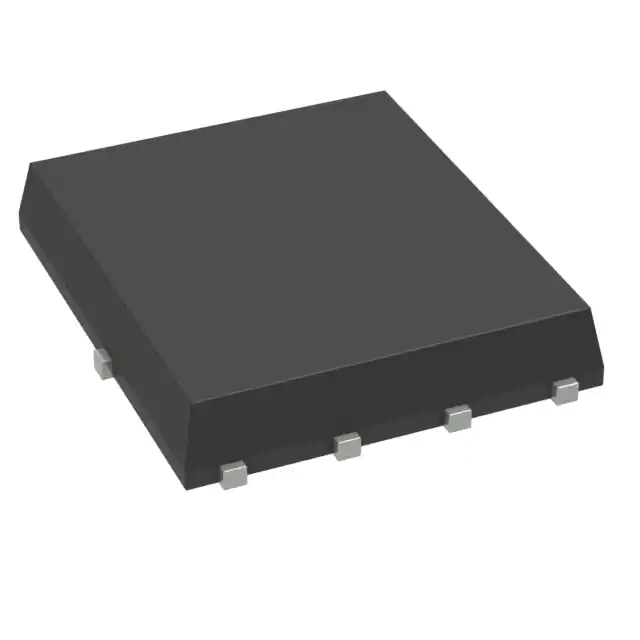

FDMS7680

FDMS7680
onsemi
MOSFET N-CH 30V 14A/28A 8PQFN
Transistors - FETs, MOSFETs - Single
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Supplier Device Package
8-PQFN (5x6)
FET Feature
-
Product Status
Active
Package
Tape & Reel (TR)^^Cut Tape (CT)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Base Product Number
FDMS76
Current - Continuous Drain (Id) @ 25°C
14A (Ta), 28A (Tc)
Input Capacitance (Ciss) (Max) @ Vds
1850 pF @ 15 V
Technology
MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id
3V @ 250µA
Mfr
onsemi
Series
PowerTrench®
Rds On (Max) @ Id, Vgs
6.9mOhm @ 14A, 10V
Gate Charge (Qg) (Max) @ Vgs
28 nC @ 10 V
Vgs (Max)
±20V
Power Dissipation (Max)
2.5W (Ta), 33W (Tc)
FET Type
N-Channel
Drain to Source Voltage (Vdss)
30 V
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Package / Case
8-PowerTDFN
Related Products

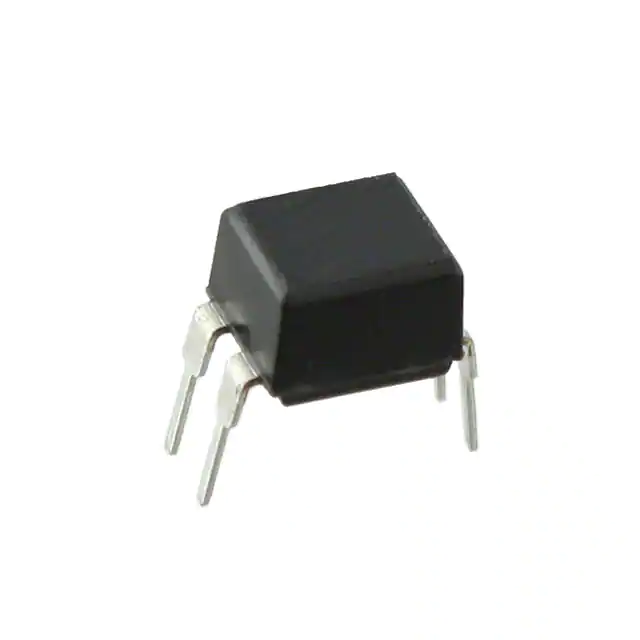

IRFD224PBF

Vishay Siliconix
JAN2N6766T1

Microsemi Corporation
2SK3404-Z-E1-AZ

Renesas Electronics America Inc
STU6N62K3

STMicroelectronics
IRFR420TR

Vishay Siliconix

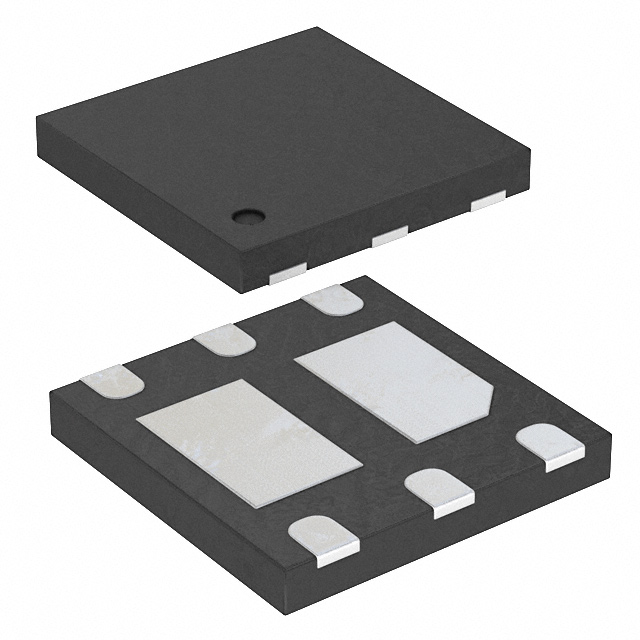

AON2701-001

Alpha & Omega Semiconductor Inc.

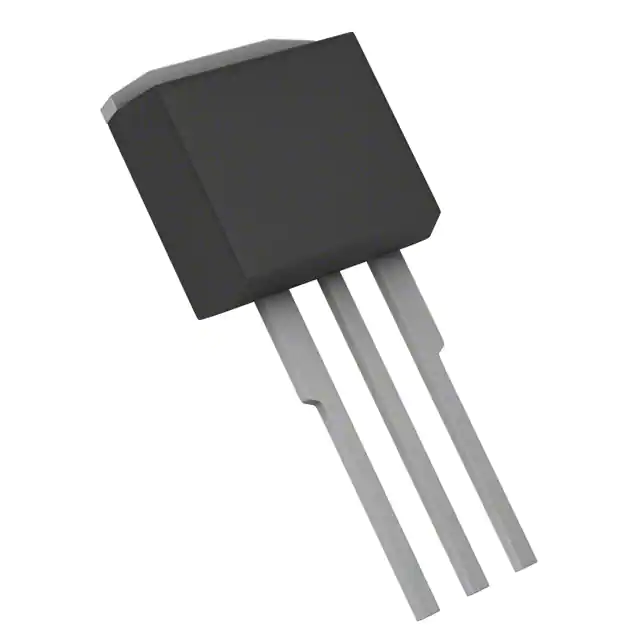

IPI05CN10N-G
