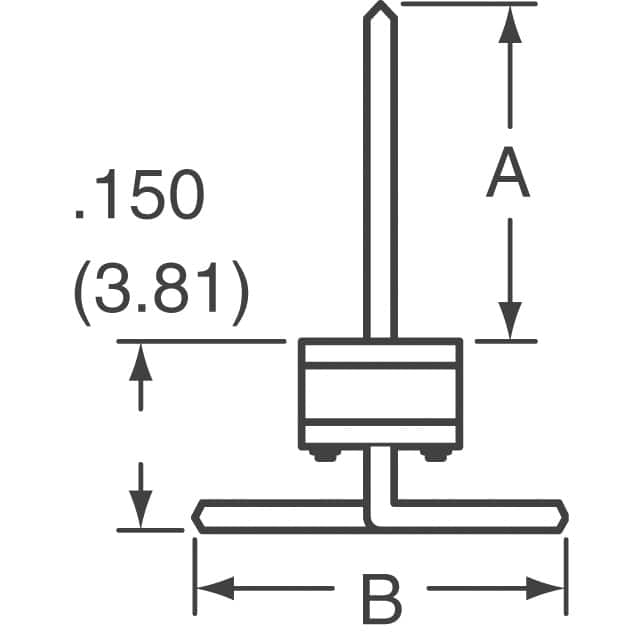

GBC15SABN-M30
GBC15SABN-M30
GBC15SABN-M30
Favorite Products
Share:

GBC15SABN-M30

GBC15SABN-M30
Sullins Connector Solutions
CONN HEADER SMD 15POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Shape
Square
Contact Finish Thickness - Post
100.0µin (2.54µm)
Row Spacing - Mating
-
Insulation Material
Polyamide (PA9T), Nylon 9T
Base Product Number
GBC15S
Mfr
Sullins Connector Solutions
Mated Stacking Heights
-
Series
-
Product Status
Active
Style
Board to Board or Cable
Contact Material
Phosphor Bronze
Features
-
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Surface Mount
Insulation Height
0.100" (2.54mm)
Number of Rows
1
Termination
Solder
Insulation Color
Black
Package
Bulk
Number of Positions
15
Shrouding
Unshrouded
Operating Temperature
-65°C ~ 150°C
Material Flammability Rating
UL94 V-0
Contact Finish - Mating
Gold
Contact Finish - Post
Tin
Voltage Rating
-
Fastening Type
Push-Pull
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Current Rating (Amps)
3A
Applications
-
Connector Type
Header, Breakaway
Contact Type
Male Pin
Number of Positions Loaded
All
Contact Length - Mating
0.230" (5.84mm)
Contact Length - Post
-
Overall Contact Length
-
Ingress Protection
-
