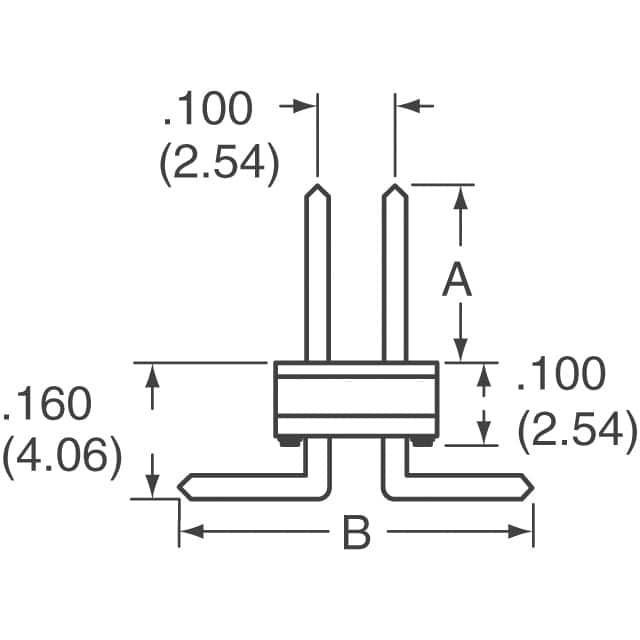

GBC29DABN-M30
GBC29DABN-M30
GBC29DABN-M30
Favorite Products
Share:

GBC29DABN-M30

GBC29DABN-M30
Sullins Connector Solutions
CONN HEADER SMD 58POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Shrouding
Unshrouded
Contact Type
Male Pin
Insulation Color
Black
Base Product Number
GBC29D
Package
Bulk
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
Insulation Height
0.100" (2.54mm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Mfr
Sullins Connector Solutions
Number of Positions
58
Contact Length - Mating
0.230" (5.84mm)
Contact Shape
Square
Operating Temperature
-65°C ~ 150°C
Connector Type
Header, Breakaway
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Number of Positions Loaded
All
Termination
Solder
Contact Length - Post
-
Current Rating (Amps)
3A
Contact Finish Thickness - Post
100.0µin (2.54µm)
Series
-
Mounting Type
Surface Mount
Fastening Type
Push-Pull
Contact Material
Phosphor Bronze
Features
-
Applications
-
Material Flammability Rating
UL94 V-0
Style
Board to Board or Cable
Overall Contact Length
-
Contact Finish - Mating
Gold
Insulation Material
Polyamide (PA9T), Nylon 9T
Ingress Protection
-
Voltage Rating
-
Mated Stacking Heights
-
