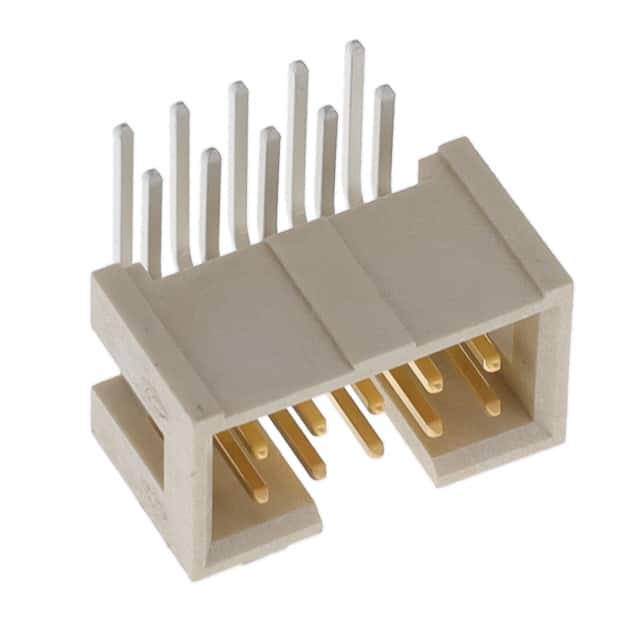

HTSS-105-04-F-D-RA
HTSS-105-04-F-D-RA
Favorite Products
Share:

HTSS-105-04-F-D-RA

HTSS-105-04-F-D-RA
Samtec Inc.
CONN HEADER R/A 10POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Material Flammability Rating
UL94 V-0
Row Spacing - Mating
0.100" (2.54mm)
Features
Keying Slot
Pitch - Mating
0.100" (2.54mm)
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Applications
-
Base Product Number
HTSS-105
Mfr
Samtec Inc.
Number of Positions
10
Insulation Height
0.365" (9.27mm)
Number of Positions Loaded
All
Ingress Protection
-
Style
Board to Board or Cable
Contact Finish Thickness - Post
-
Contact Type
Male Pin
Number of Rows
2
Termination
Solder
Contact Shape
Square
Operating Temperature
-55°C ~ 125°C
Insulation Color
Natural
Connector Type
Header
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.250" (6.35mm)
Contact Finish - Post
Tin
Mated Stacking Heights
-
Contact Length - Post
0.130" (3.30mm)
Overall Contact Length
-
Contact Finish Thickness - Mating
3.00µin (0.076µm)
Series
Flex Stack, HTSS
Product Status
Active
Contact Material
Phosphor Bronze
Current Rating (Amps)
-
Voltage Rating
-
Package
Tube
Mounting Type
Through Hole, Right Angle
Insulation Material
Liquid Crystal Polymer (LCP)
