HTSW-108-20-F-S
HTSW-108-20-F-S
Favorite Products
Share:

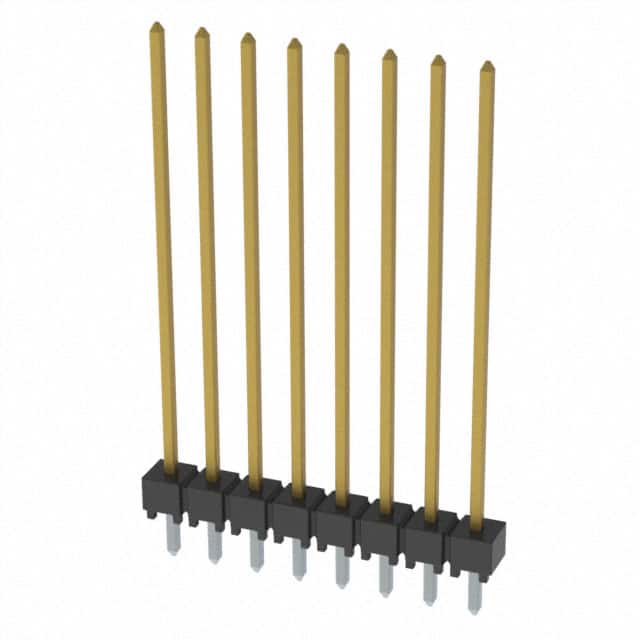

HTSW-108-20-F-S

HTSW-108-20-F-S
Samtec Inc.
CONN HEADER VERT 8POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Shape
Square
Contact Finish - Post
Tin
Number of Positions
8
Number of Positions Loaded
All
Mounting Type
Through Hole
Features
-
Applications
-
Row Spacing - Mating
-
Contact Finish Thickness - Mating
3.00µin (0.076µm)
Insulation Material
Liquid Crystal Polymer (LCP)
Ingress Protection
-
Shrouding
Unshrouded
Termination
Solder
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Package
Bulk
Connector Type
Header
Mfr
Samtec Inc.
Series
HTSW
Contact Type
Male Pin
Number of Rows
1
Style
Board to Board or Cable
Contact Finish Thickness - Post
-
Fastening Type
Push-Pull
Base Product Number
HTSW-108
Product Status
Active
Contact Length - Mating
1.020" (25.91mm)
Contact Length - Post
0.110" (2.79mm)
Insulation Height
0.100" (2.54mm)
Contact Finish - Mating
Gold
Current Rating (Amps)
Varies by Wire Gauge
Voltage Rating
-
Pitch - Mating
0.100" (2.54mm)
Overall Contact Length
1.230" (31.24mm)
Contact Material
Phosphor Bronze
Insulation Color
Natural
