HTSW-109-07-G-D-018
HTSW-109-07-G-D-018
Favorite Products
Share:

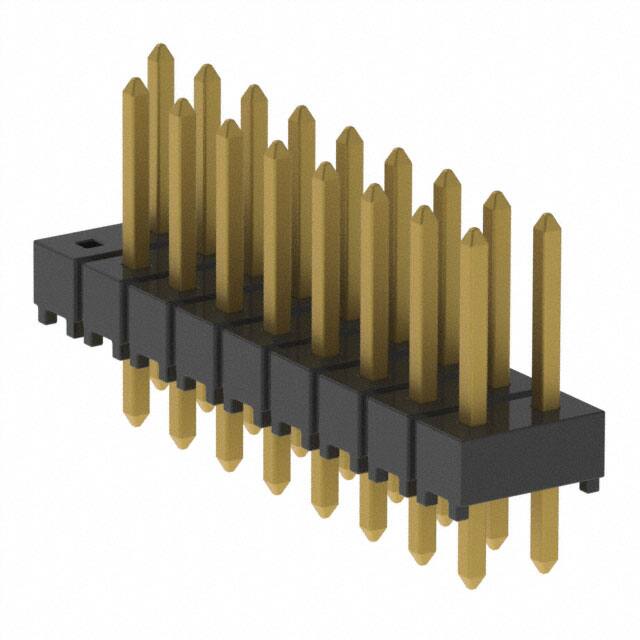

HTSW-109-07-G-D-018

HTSW-109-07-G-D-018
Samtec Inc.
CONN HEADER VERT 18POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
HTSW-109
Current Rating (Amps)
Varies by Wire Gauge
Contact Finish - Post
Gold
Shrouding
Unshrouded
Series
HTSW
Number of Positions
18
Ingress Protection
-
Mated Stacking Heights
-
Applications
-
Contact Type
Male Pin
Fastening Type
Push-Pull
Insulation Height
0.100" (2.54mm)
Package
Bulk
Connector Type
Header
Material Flammability Rating
UL94 V-0
Style
Board to Board or Cable
Contact Shape
Square
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
17
Contact Length - Mating
0.230" (5.84mm)
Contact Finish - Mating
Gold
Insulation Material
Liquid Crystal Polymer (LCP)
Contact Finish Thickness - Post
3.00µin (0.076µm)
Product Status
Active
Number of Rows
2
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Mounting Type
Through Hole
Termination
Solder
Operating Temperature
-55°C ~ 125°C
Voltage Rating
-
Features
-
Mfr
Samtec Inc.
Pitch - Mating
0.100" (2.54mm)
Contact Length - Post
0.100" (2.54mm)
Overall Contact Length
0.430" (10.92mm)
Contact Material
Phosphor Bronze
Insulation Color
Natural
