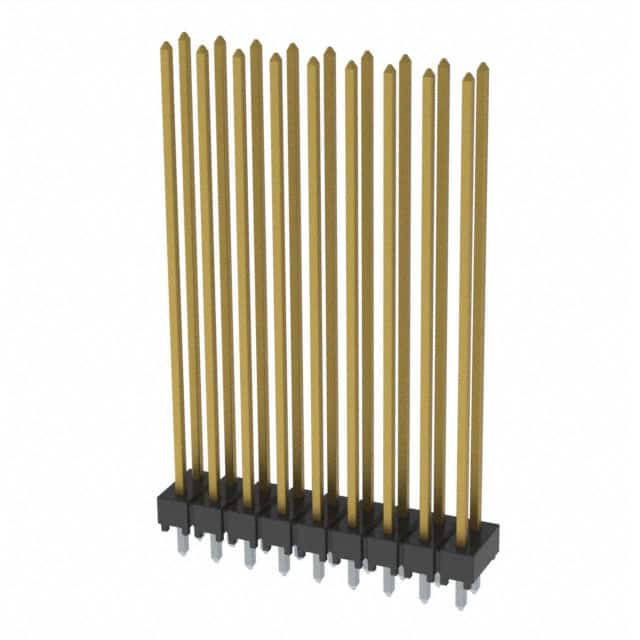

HTSW-109-21-S-D
HTSW-109-21-S-D
Favorite Products
Share:

HTSW-109-21-S-D

HTSW-109-21-S-D
Samtec Inc.
CONN HEADER VERT 18POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Rows
2
Contact Length - Post
0.110" (2.79mm)
Contact Type
Male Pin
Current Rating (Amps)
Varies by Wire Gauge
Applications
-
Contact Shape
Square
Style
Board to Board or Cable
Mounting Type
Through Hole
Fastening Type
Push-Pull
Insulation Height
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Ingress Protection
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Insulation Material
Liquid Crystal Polymer (LCP)
Shrouding
Unshrouded
Contact Length - Mating
1.220" (30.99mm)
Material Flammability Rating
UL94 V-0
Base Product Number
HTSW-109
Mfr
Samtec Inc.
Package
Bulk
Number of Positions
18
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Features
-
Insulation Color
Natural
Mated Stacking Heights
-
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
Overall Contact Length
1.430" (36.32mm)
Voltage Rating
-
Series
HTSW
Connector Type
Header
Termination
Solder
Operating Temperature
-55°C ~ 125°C
Contact Finish Thickness - Post
-
