IXYT85N120A4HV
IXYT85N120A4HV
Favorite Products

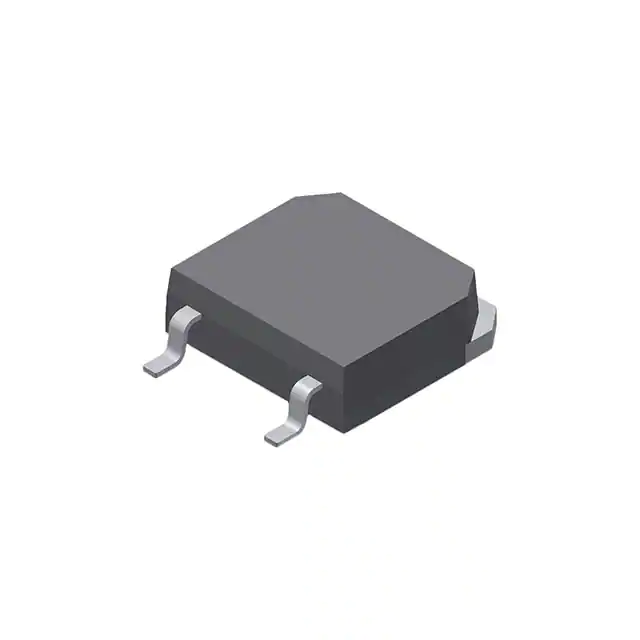

IXYT85N120A4HV
IXYT85N120A4HV
IXYS
IGBT GENX4 1200V 85A TO268HV
Transistors - IGBTs - Single
littelfuse_discrete_igbts_xpt_ixyt85n120a4hv_datasheet.pdf.pdf
9999
9999 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Current - Collector (Ic) (Max)
300 A
Mounting Type
Surface Mount
Current - Collector Pulsed (Icm)
520 A
Series
-
Input Type
Standard
Package / Case
TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Base Product Number
IXYT85
Product Status
Active
IGBT Type
PT
Power - Max
1150 W
Switching Energy
4.9mJ (on), 8.3mJ (off)
Td (on/off) @ 25°C
40ns/400ns
Package
Tube
Test Condition
600V, 60A, 5Ohm, 15V
Voltage - Collector Emitter Breakdown (Max)
1200 V
Operating Temperature
-55°C ~ 175°C (TJ)
Supplier Device Package
TO-268HV (IXYT)
Mfr
IXYS
Gate Charge
200 nC
Vce(on) (Max) @ Vge, Ic
1.8V @ 15V, 85A
Reverse Recovery Time (trr)
40 ns
Related Products

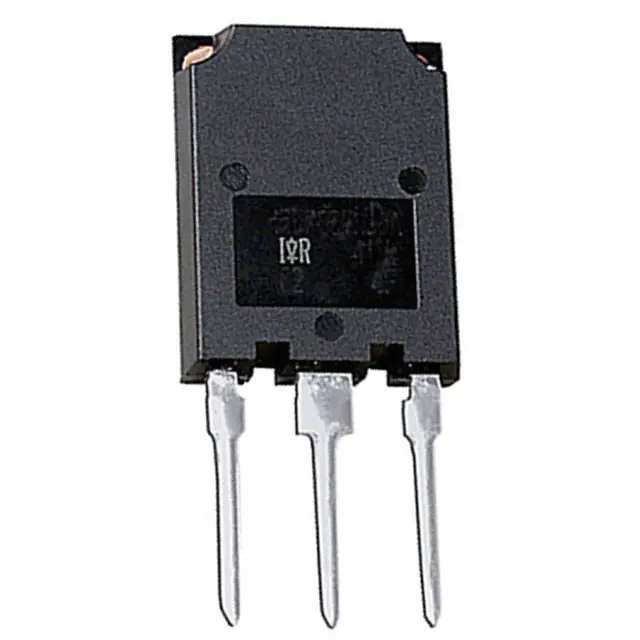

IRG4PSH71U

Infineon Technologies
IRGS4620DPBF

Infineon Technologies

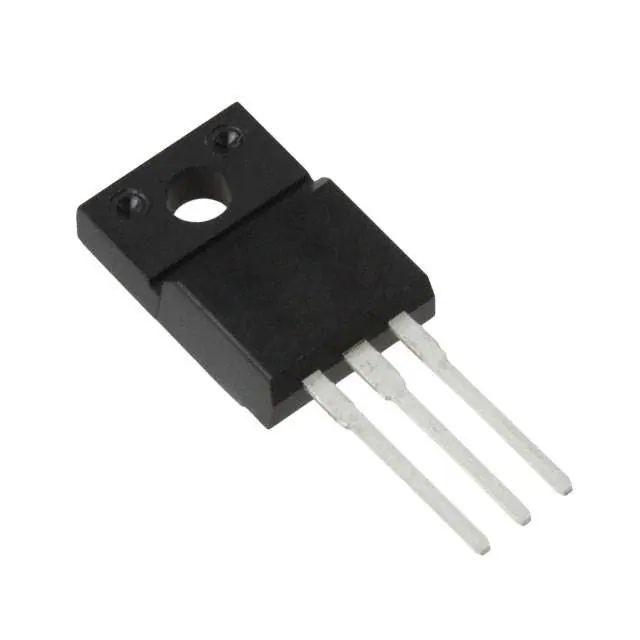

STGF30H60DF

STMicroelectronics
AOD5B65M1

Alpha & Omega Semiconductor Inc.
IKD10N60R

Infineon Technologies
MGP11N60ED

onsemi

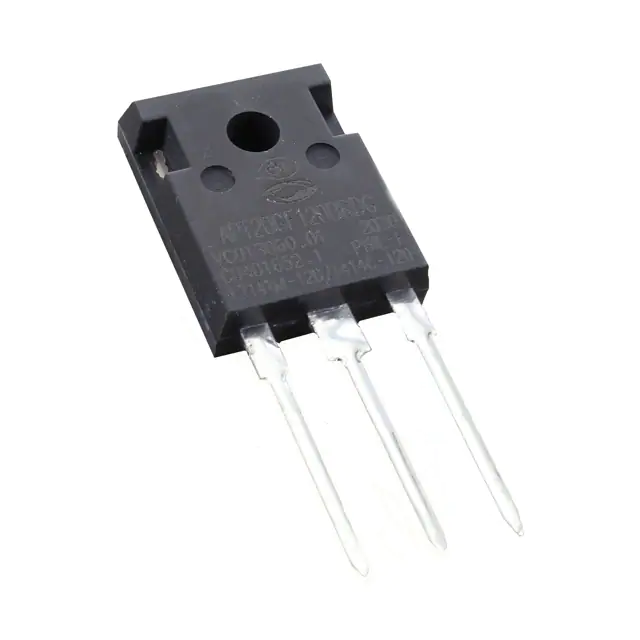

APT20GF120BRDG
