M20-7830246
M20-7830246
M20-7830246
Favorite Products
Share:

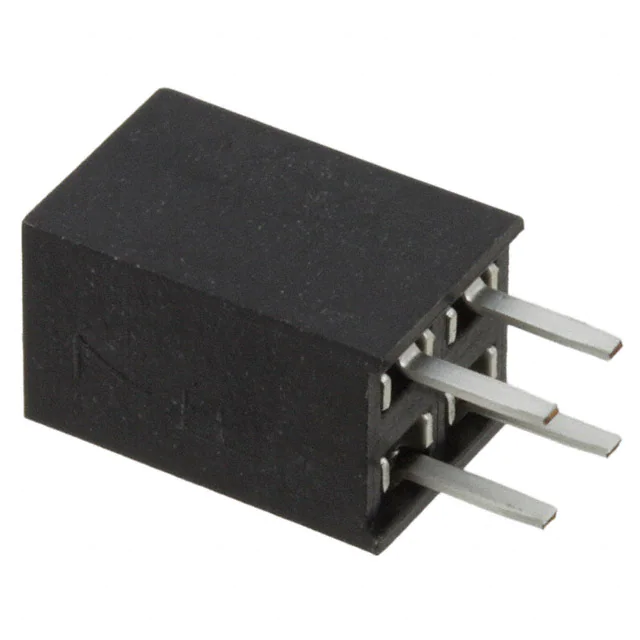

M20-7830246

M20-7830246
Harwin Inc.
CONN RCPT 4POS 0.1 TIN PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
M20-783
Contact Length - Post
0.118" (3.00mm)
Contact Type
Female Socket
Current Rating (Amps)
3A
Ingress Protection
-
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Mating
-
Number of Positions Loaded
All
Termination
Solder
Series
M20
Contact Shape
Square
Product Status
Active
Connector Type
Receptacle
Style
Board to Board or Cable
Number of Positions
4
Mounting Type
Through Hole
Insulation Color
Black
Voltage Rating
1000V
Insulation Material
Polyamide (PA6T), Nylon 6T
Package
Tube
Number of Rows
2
Fastening Type
Push-Pull
Insulation Height
0.335" (8.51mm)
Operating Temperature
-40°C ~ 105°C
Material Flammability Rating
UL94 V-0
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Mating
Tin
Contact Finish - Post
Tin
Applications
General Purpose, Industrial, Telecommunications
Mfr
Harwin Inc.
Mated Stacking Heights
11.04mm, 12.63mm
Features
-
Contact Material
Phosphor Bronze
Contact Finish Thickness - Post
-
