M20-7830446
M20-7830446
M20-7830446
Favorite Products
Share:

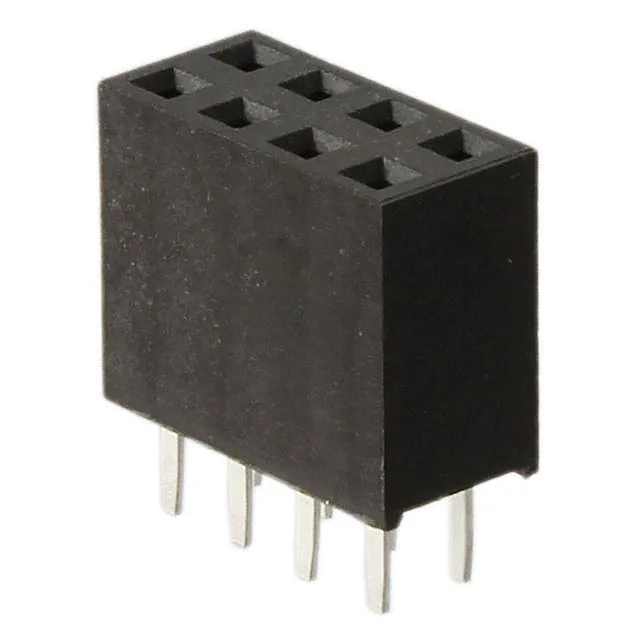

M20-7830446

M20-7830446
Harwin Inc.
CONN RCPT 8POS 0.1 TIN PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Material
Polyamide (PA6T), Nylon 6T
Material Flammability Rating
UL94 V-0
Base Product Number
M20-783
Number of Positions Loaded
All
Features
-
Row Spacing - Mating
0.100" (2.54mm)
Insulation Height
0.335" (8.51mm)
Mated Stacking Heights
11.04mm, 12.63mm
Ingress Protection
-
Current Rating (Amps)
3A
Applications
General Purpose, Industrial, Telecommunications
Contact Finish Thickness - Post
-
Style
Board to Board or Cable
Insulation Color
Black
Contact Material
Phosphor Bronze
Fastening Type
Push-Pull
Contact Finish - Mating
Tin
Contact Finish - Post
Tin
Voltage Rating
1000V
Series
M20
Contact Type
Female Socket
Number of Rows
2
Connector Type
Receptacle
Termination
Solder
Mfr
Harwin Inc.
Package
Tube
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Contact Finish Thickness - Mating
-
Contact Length - Post
0.118" (3.00mm)
Contact Shape
Square
Number of Positions
8
Operating Temperature
-40°C ~ 105°C
