M20-7830742
M20-7830742
Favorite Products
Share:

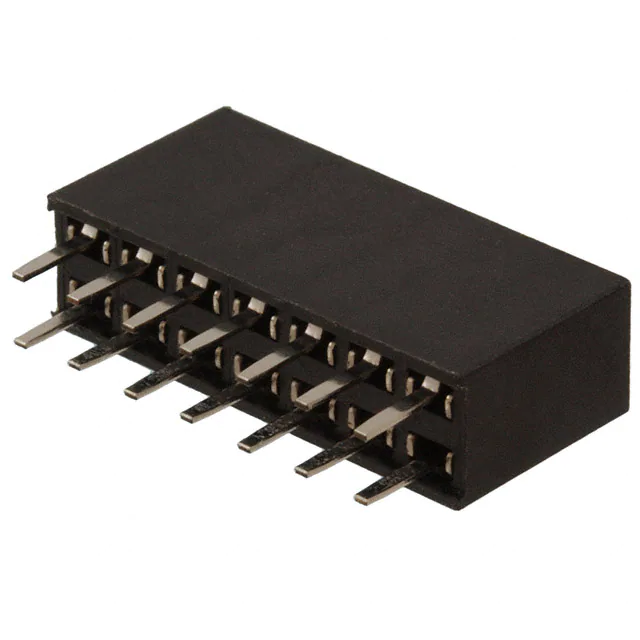

M20-7830742

M20-7830742
Harwin Inc.
CONN RCPT 14POS 0.1 GOLD PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Receptacle
Ingress Protection
-
Number of Rows
2
Contact Material
Phosphor Bronze
Insulation Color
Black
Number of Positions Loaded
All
Fastening Type
Push-Pull
Insulation Height
0.335" (8.51mm)
Contact Length - Post
0.118" (3.00mm)
Features
-
Mounting Type
Through Hole
Applications
General Purpose, Industrial, Telecommunications
Mfr
Harwin Inc.
Contact Type
Female Socket
Termination
Solder
Current Rating (Amps)
3A
Contact Finish Thickness - Post
-
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
14
Contact Finish - Mating
Gold
Operating Temperature
-40°C ~ 105°C
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Mating
Flash
Mated Stacking Heights
11.04mm, 12.63mm
Series
M20
Style
Board to Board or Cable
Voltage Rating
1000V
Package
Tube
Product Status
Obsolete
Material Flammability Rating
UL94 V-0
Contact Shape
Square
