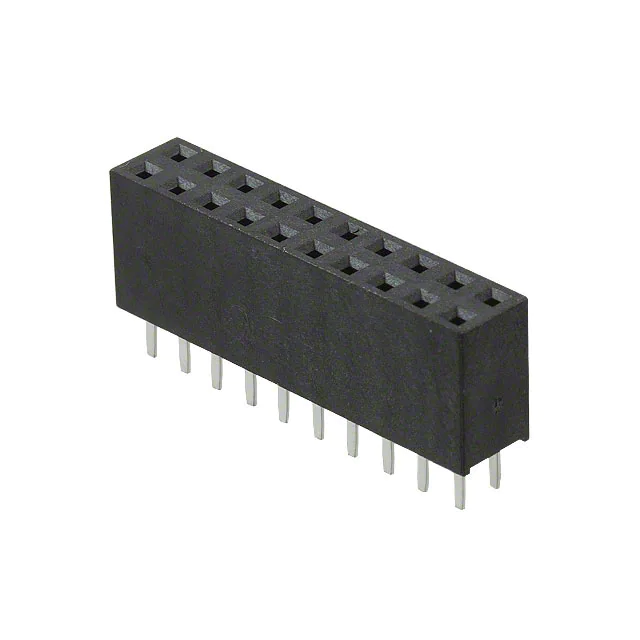

M20-7831046
M20-7831046
M20-7831046
Favorite Products
Share:

M20-7831046

M20-7831046
Harwin Inc.
CONN RCPT 20POS 0.1 TIN PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Current Rating (Amps)
3A
Contact Finish Thickness - Mating
-
Product Status
Active
Insulation Color
Black
Voltage Rating
1000V
Contact Shape
Square
Mounting Type
Through Hole
Applications
General Purpose, Industrial, Telecommunications
Insulation Material
Polyamide (PA6T), Nylon 6T
Base Product Number
M20-783
Series
M20
Number of Positions
20
Contact Finish - Mating
Tin
Contact Material
Phosphor Bronze
Pitch - Mating
0.100" (2.54mm)
Operating Temperature
-40°C ~ 105°C
Termination
Solder
Insulation Height
0.335" (8.51mm)
Contact Finish - Post
Tin
Ingress Protection
-
Mfr
Harwin Inc.
Connector Type
Receptacle
Contact Type
Female Socket
Features
-
Contact Finish Thickness - Post
-
Package
Tube
Style
Board to Board or Cable
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Post
0.118" (3.00mm)
Mated Stacking Heights
11.04mm, 12.63mm
Number of Positions Loaded
All
Fastening Type
Push-Pull
Material Flammability Rating
UL94 V-0
