M22-2030246
M22-2030246
Favorite Products
Share:

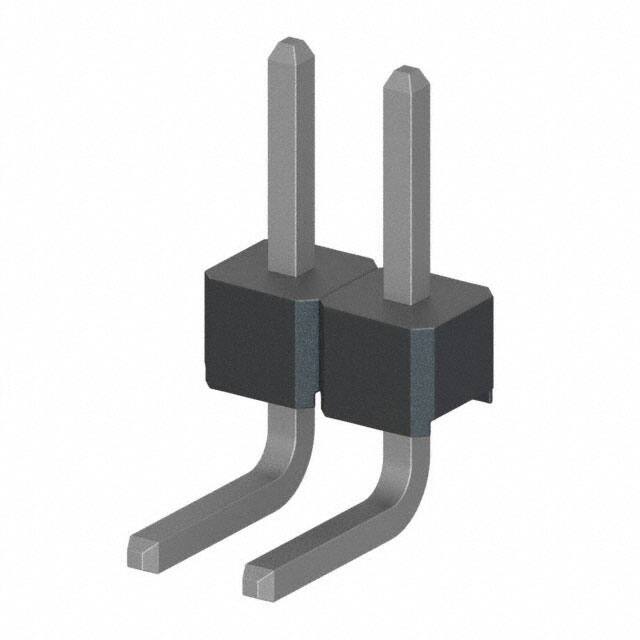

M22-2030246

M22-2030246
Harwin Inc.
CONN HEADER R/A 2POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Shape
Square
Number of Positions Loaded
All
Number of Positions
2
Contact Finish - Mating
Tin
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Series
M22
Contact Type
Male Pin
Style
Board to Board
Operating Temperature
-55°C ~ 105°C
Row Spacing - Mating
-
Contact Length - Mating
0.138" (3.50mm)
Contact Finish Thickness - Mating
-
Mated Stacking Heights
-
Contact Length - Post
0.118" (3.00mm)
Product Status
Obsolete
Connector Type
Header, Cuttable
Shrouding
Unshrouded
Mounting Type
Through Hole, Right Angle
Fastening Type
Push-Pull
Features
-
Ingress Protection
-
Current Rating (Amps)
1A per Contact
Mfr
Harwin Inc.
Pitch - Mating
0.079" (2.00mm)
Number of Rows
1
Termination
Solder
Overall Contact Length
-
Applications
-
Package
Bulk
Insulation Height
0.079" (2.00mm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Insulation Material
Polyamide (PA6T), Nylon 6T
Insulation Color
Black
Contact Finish Thickness - Post
-
